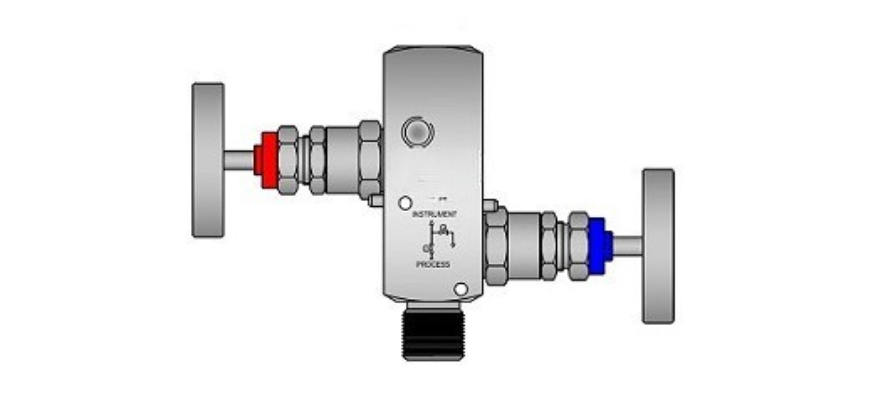

2 Way Remote Mount Valve (2VMR-M20-MF)
2 Way Remote Mount Valve (2VMR-M20-MF)
-2.png)
- This manifolds is used for connect a static pressure instrument to process fluid composed of primary block valve and secondry valve for instrument venting or calibrating of a static pressure transmitter or gauge.
Features:
- Barstock body outside screwed bonnet.
- Connection at 180°.
- Process connection : M20
- Instrument connection : M20
- Drain : M10
- All valves are 100% factory tested.
- Connection options : NPT, BSPT, BSP & Socket Weld.
- Working pressure : 6000 psi (413 bar).
- Stem packing : PTFE (standard), GRAPHOIL (optional).
- Temperature : PTFE 450°F (232°C) & GRAPHOIL 700°F (371°C).
- Variety Material : SS, CS, F11, Hastelloy, Monel, etc.
- According to MSS-SP-61 and EN 12266-1.

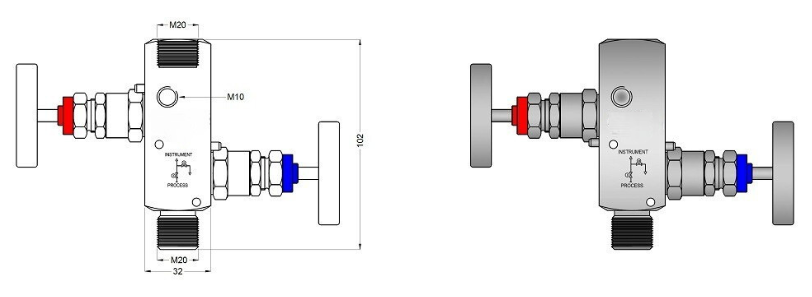

 Main View.png)
Manifold Valve Includes
Hex Pipe Plug - M10
* Dimensions are for reference only. Subject to change.
Caution
⚠ Valves that have not been cycled for a period of time may have a higher initial actuation torque.
