3 Way Remote Mount Valve (3VMR2)
3 Way Remote Mount Valve (3VMR2)

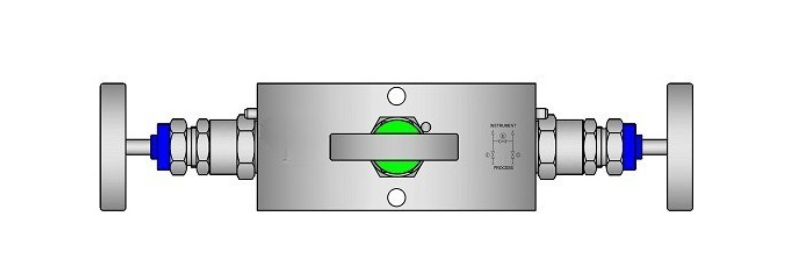

 (2).png)
- This manifold is used to connect a static pressure instrument to process fluid, composed of a primary block valve and a secondary valve for instrument venting or calibrating of a static pressure transmitter or gauge.
Features:
- Barstock body outside screwed bonnet.
- Connection at 180°.
- Process connection : 1/2" NPT ANSI B1.20.1
- Instrument connection : 1/2" NPT ANSI B1.20.1
- Drain : 1/4" NPT-F ANSI B1.20.1
- All valves are 100% factory tested.
- Connection options : NPT, BSPT, BSP & Socket Weld.
- Working pressure : 6000 psi (413 bar).
- Stem packing : PTFE (standard), GRAPHOIL (optional).
- Temperature : PTFE 450°F (232°C) & GRAPHOIL 700°F (371°C).
- Variety Material : SS, CS, F11, Hastelloy, Monel, etc.
- According to MSS-SP-61 and EN 12266-1.

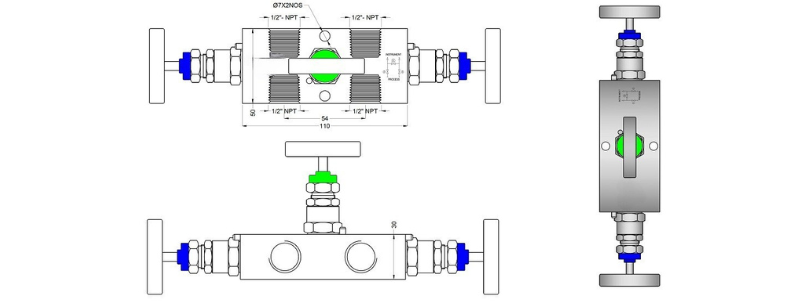

 Main View.png)
Manifold Valve Includes
Hex Pipe Plug 1/4" NPT (PHP-4N)
Flange Mounting Bolts - High Tensile Carbon Steel
* Dimensions are for reference only. Subject to change.
Caution
⚠ Valves that have not been cycled for a period of time may have a higher initial actuation torque.
