Male Connector – UF
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, UF, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

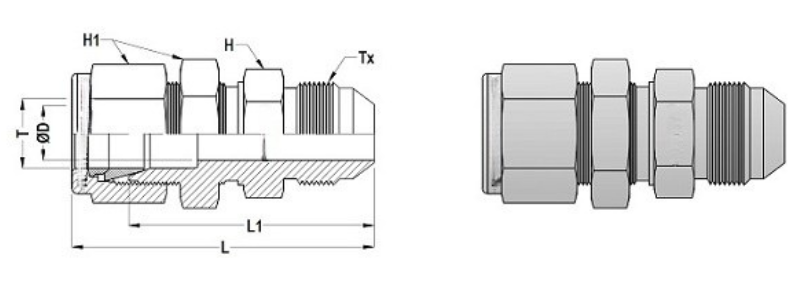

| RADILOK Part Number | T (Tube OD) | Tx | Tx (UN/UNF-2A) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|---|
| 4BMC-4AN | 1/4" | 1/4" | 7/16"-20 | 53.7 | 46.4 | 4.3 | 1/2 | 9/16 |
| 6BMC-6AN | 3/8" | 3/8" | 9/16"-20 | 57.1 | 49.8 | 7.1 | 5/8 | 11/16 |
| 8BMC-8AN | 1/2" | 1/2" | 3/4"-16 | 65.7 | 55.6 | 9.9 | 13/16 | 7/8 |
| 12BMC-12AN | 3/4" | 3/4" | 1.1/16"-12 | 78.9 | 68.8 | 15.5 | 1.1/16 | 1.1/8 |
| 16BMC-16AN | 1" | 1" | 1.5/16"-12 | 92.4 | 80.2 | 21.3 | 1.3/8 | 1.1/2 |
