Male Connector – UF
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, UF, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

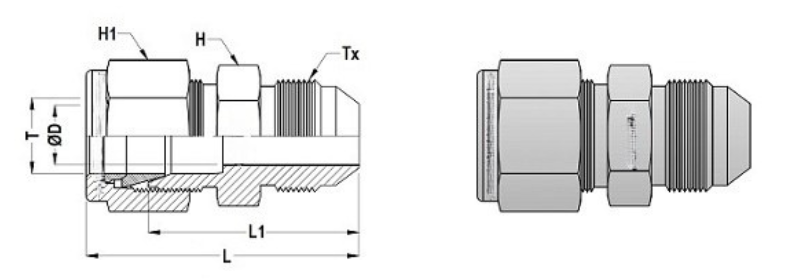

| RADILOK Part Number | T (Tube OD) | Tx | Tx (UN/UNF-2A) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|---|
| 2-MC-2AN | 1/8" | 1/8" | 5/16"-24 | 32.2 | 25.6 | 1.5 | 7/16 | 7/16 |
| 2-MC-4AN | 1/8" | 1/4" | 7/16"-20 | 35.0 | 28.4 | 2.3 | 1/2 | 7/16 |
| 4-MC-4AN | 1/4" | 1/4" | 7/16"-20 | 37.6 | 30.2 | 4.3 | 1/2 | 9/16 |
| 5-MC-5AN | 5/16" | 5/16" | 1/2"-20 | 38.3 | 31.0 | 5.8 | 9/16 | 9/16 |
| 6-MC-4AN | 3/8" | 1/4" | 7/16"-20 | 39.6 | 32.2 | 5.8 | 5/8 | 9/16 |
| 6-MC-6AN | 3/8" | 3/8" | 9/16"-18 | 39.6 | 32.2 | 7.1 | 5/8 | 11/16 |
| 8-MC-8AN | 1/2" | 1/2" | 3/4"-16 | 46.0 | 35.8 | 9.9 | 13/16 | 7/8 |
| 12-MC-12AN | 3/4" | 3/4" | 1.1/16"-12 | 53.3 | 43.2 | 15.8 | 1.1/16 | 1.1/8 |
| 16-MC-16AN | 1" | 1" | 1.5/16"-12 | 61.5 | 49.3 | 21.3 | 1.3/8 | 1.1/2 |
