Bulkhead Female Connector - NPT
Bulkhead Female Connector - NPT
Tube Fittings
- Features:Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, BSPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

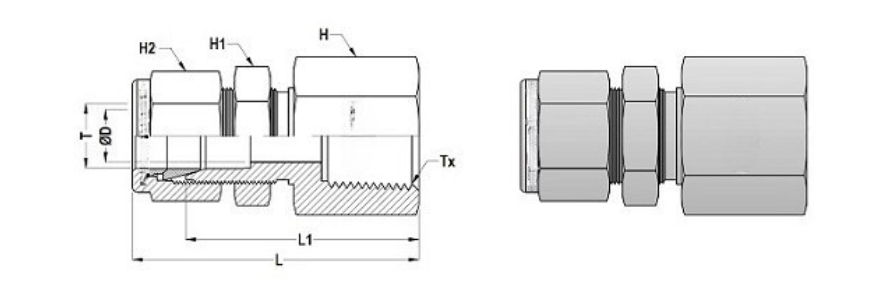

| RADILOK Part Number | T (Tube OD) | Tx (NPT) | L (mm) | L1 (mm) | Ø D (mm) | H (Inch) | H1 (Inch) | H2 (Inch) |
|---|---|---|---|---|---|---|---|---|
| 2-BFC-2N | 1/8" | 1/8" | 44.7 | 38.1 | 2.3 | 9/16 | 1/2 | 7/16 |
| 4-BFC-2N | 1/4" | 1/8" | 47.0 | 39.6 | 4.8 | 5/8 | 5/8 | 9/16 |
| 4-BFC-4N | 1/4" | 1/4" | 51.8 | 44.4 | 4.8 | 3/4 | 5/8 | 9/16 |
| 8-BFC-4N | 3/8" | 1/2" | 55.1 | 47.7 | 4.8 | 3/4 | 11/16 | 3/4 |
| 8-BFC-6N | 1/2" | 3/8" | 61.7 | 51.6 | 10.4 | 1 1/16 | 15/16 | 7/8 |
| 8-BFC-8N | 1/2" | 1/2" | 68.5 | 56.4 | 10.4 | 1 1/16 | 15/16 | 7/8 |
| 12-BFC-12N | 3/4" | 3/4" | 73.5 | 63.8 | 15.7 | 1 1/4 | 1 3/16 | 1 1/8 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (NPT) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) | H2 (mm) |
|---|---|---|---|---|---|---|---|---|
| 6M-BFC-2N | 6 mm | 1/8" | 46.9 | 39.6 | 4.8 | 14 | 14 | 14 |
| 6M-BFC-4N | 6 mm | 1/4" | 51.8 | 44.4 | 4.8 | 19 | 14 | 14 |
| 8M-BFC-4N | 8 mm | 1/4" | 53.9 | 46.7 | 6.3 | 19 | 16 | 16 |
| 12M-BFC-8N | 12 mm | 1/2" | 68.5 | 56.4 | 9.5 | 27 | 22 | 22 |
