Bulkhead Male Connector - NPT
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, NPT, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

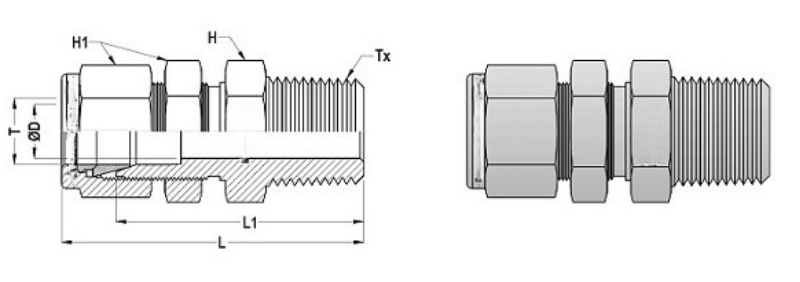

| RADILOK Part Number | T (Tube OD) | Tx (NPT) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|
| 2-BMC-2N | 1/8" | 1/8" | 46.5 | 39.3 | 2.3 | 1/2 | 1/2 |
| 4-BMC-2N | 1/4" | 1/8" | 49.5 | 42.2 | 4.8 | 5/8 | 9/16 |
| 4-BMC-4N | 1/4" | 1/4" | 54.1 | 48.3 | 4.8 | 5/8 | 11/16 |
| 6-BMC-4N | 3/8" | 1/4" | 53.7 | 50.0 | 7.1 | 3/4 | 11/16 |
| 6-BMC-6N | 3/8" | 3/8" | 57.4 | 50.0 | 7.1 | 3/4 | 11/16 |
| 8-BMC-6N | 1/2" | 3/8" | 63.7 | 63.7 | 10.4 | 15/16 | 7/8 |
| 8-BMC-8N | 1/2" | 1/2" | 66.3 | 63.7 | 10.4 | 15/16 | 7/8 |
| 12-BMC-8N | 3/4" | 1/2" | 68.8 | 58.7 | 15.6 | 1.1/16 | 7/8 |
| 8-BMC-12N | 1/2" | 3/4" | 76.9 | 69.9 | 10.4 | 1.3/16 | 1.1/8 |
| 12-BMC-12N | 3/4" | 3/4" | 82.6 | 76.9 | 15.6 | 1.3/16 | 1.1/4 |
| 12-BMC-16N | 3/4" | 1" | 93.2 | 81.0 | 22.3 | 1.5/8 | 1.1/2 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (NPT) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|---|
| 3M-BMC-2N | 3 mm | 1/8" | 46.4 | 38.0 | 2.4 | 12 | 11 |
| 6M-BMC-2N | 6 mm | 1/8" | 50.3 | 42.9 | 4.8 | 14 | 12 |
| 6M-BMC-4N | 6 mm | 1/4" | 56.4 | 50.5 | 4.8 | 14 | 14 |
| 8M-BMC-4N | 8 mm | 1/4" | 59.1 | 50.5 | 6.4 | 19 | 17 |
| 10M-BMC-4N | 10 mm | 1/4" | 59.1 | 50.5 | 7.9 | 22 | 19 |
| 10M-BMC-8N | 10 mm | 1/2" | 68.1 | 59.5 | 7.9 | 22 | 22 |
| 12M-BMC-8N | 12 mm | 1/2" | 69.9 | 63.7 | 9.5 | 22 | 22 |
| 12M-BMC-12N | 12 mm | 3/4" | 82.6 | 69.9 | 9.5 | 27 | 25 |
| 16M-BMC-12N | 16 mm | 3/4" | 86.9 | 69.9 | 12.7 | 27 | 25 |
| 25M-BMC-16N | 25 mm | 1" | 93.3 | 81.0 | 21.8 | 41 | 32 |
