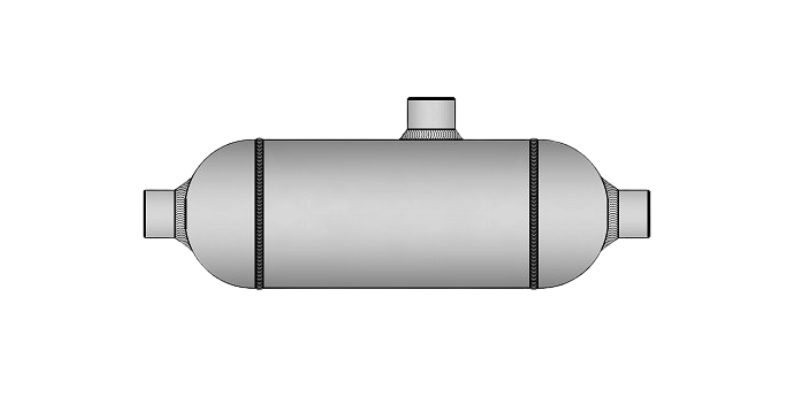

Condensate Pot -3 Coupling
Application:
- Condensing Chambers are largely used in steam metering lines to coil & condensate steam and to maintain a constant liquid head above instrument.
- Condensate pot use as liquid or condensate traps, seal pots, vapour chambers & knockout pots.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Pipe size 2", 3", 4" & larger size available upon request.
- Schedule size 40, 80 & 160.
- Material of constructon in SS316, SS304, CS, ASTM A106 Gr B.
Features:
- 1/2" NPT furnished as per ANSI B1.20.1
- Butt weld as per ANSI 16.9
- Socket weld as per ANSI B16.11
- All welding as per ASME Section IX.
Testing:
- All chambers are 100% factory tested.
Condensate Pot -3 Coupling
Condensate Pot -3 Coupling

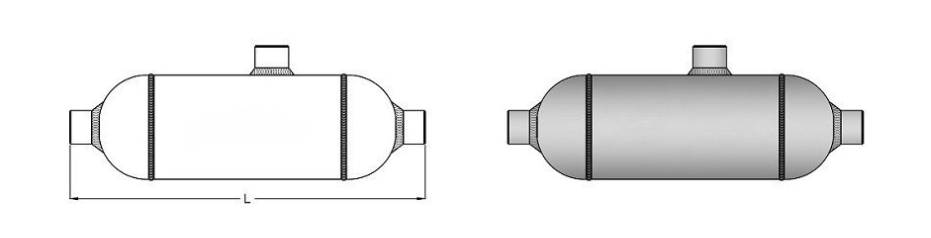

| RADILOK Part Number | NB Size | Schedule Designation ANSI / ASME | L (mm) |
|---|---|---|---|
| CP3-3-SCH40 | 3" | SCH 40 | 280 |
| CP3-3-SCH80 | 3" | SCH 80 | 280 |
| CP3-3-SCH160 | 3" | SCH 160 | 280 |
| CP3-3-SCHXX | 3" | SCH XX | 280 |
| CP3-4-SCH40 | 4" | SCH 40 | 355 |
| CP3-4-SCH80 | 4" | SCH 80 | 355 |
| CP3-4-SCH160 | 4" | SCH 160 | 355 |
| CP3-4-SCHXX | 4" | SCH XX | 355 |
