Equal Union
Tube Fittings
Gangesbilly
Interchangeability
Low Torque
Positive Leak-Free Seal
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
End Connections: RADILOK Tube Fitting, NFI Type Thread (ISO 771 Tagered Thread, ISO
22871 Parallel Thread)
Fractional Tubes

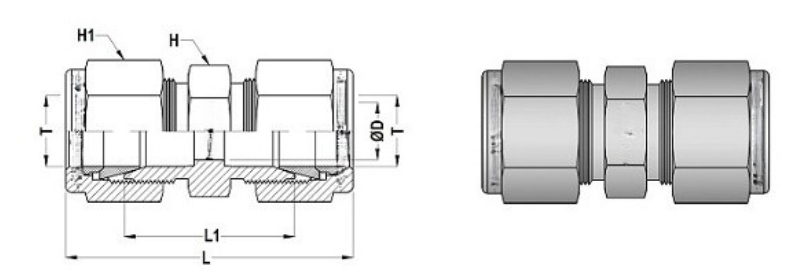

| RADILOK Part No. | Tube OD (T) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|
| 2-U | 1/8" | 35.6 | 22.3 | 2.3 | 7/16 | 7/16 |
| 3-U | 3/16" | 37.3 | 24.1 | 3.0 | 7/16 | 1/2 |
| 4-U | 1/4" | 40.9 | 26.2 | 4.8 | 1/2 | 9/16 |
| 5-U | 5/16" | 42.9 | 28.2 | 6.3 | 9/16 | 5/8 |
| 6-U | 3/8" | 44.9 | 30.2 | 7.1 | 5/8 | 11/16 |
| 8-U | 1/2" | 51.3 | 31.0 | 10.4 | 13/16 | 7/8 |
| 10-U | 5/8" | 52.1 | 31.7 | 12.7 | 15/16 | 1 |
| 12-U | 3/4" | 53.6 | 33.3 | 15.7 | 1.1/16 | 1.1/8 |
| 14-U | 7/8" | 55.1 | 34.8 | 18.3 | 1.3/16 | 1.1/4 |
| 16-U | 1" | 64.8 | 40.4 | 22.3 | 1.3/8 | 1.1/2 |
Metric Tubes
| RADILOK Part No. | Tube OD (T) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|
| 3M-U | 3 mm | 35.3 | 22.1 | 2.4 | 1.2 | 1.2 |
| 4M-U | 4 mm | 37.3 | 24.1 | 2.4 | 1.2 | 1.2 |
| 6M-U | 6 mm | 41.0 | 26.2 | 4.8 | 1.4 | 1.4 |
| 8M-U | 8 mm | 43.2 | 28.2 | 6.4 | 1.6 | 1.7 |
| 10M-U | 10 mm | 46.2 | 31.0 | 7.9 | 1.7 | 1.9 |
| 12M-U | 12 mm | 51.2 | 31.0 | 9.5 | 2.2 | 2.2 |
| 15M-U | 15 mm | 52.0 | 31.8 | 11.9 | 2.4 | 2.5 |
| 16M-U | 16 mm | 52.0 | 31.8 | 12.7 | 2.4 | 2.5 |
| 18M-U | 18 mm | 53.5 | 33.3 | 15.1 | 2.7 | 3.0 |
| 20M-U | 20 mm | 55.0 | 34.8 | 15.9 | 3.0 | 3.2 |
| 22M-U | 22 mm | 55.0 | 34.8 | 18.3 | 3.0 | 3.2 |
| 25M-U | 25 mm | 65.0 | 40.4 | 21.8 | 3.5 | 3.8 |
