Female Connector - NPT
Female Connector - NPT
Tube Fittings
- Features:Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

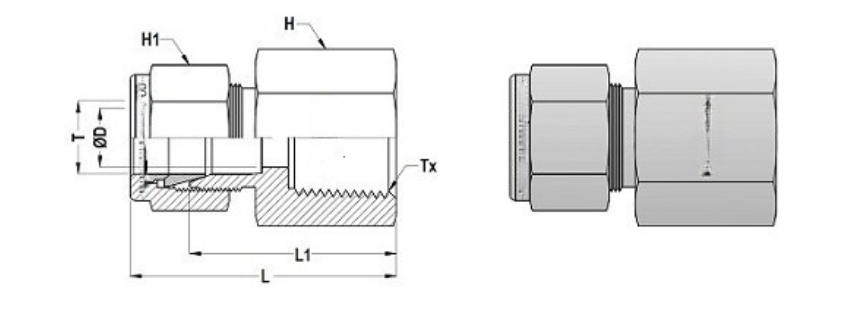

| RADILOK Part Number | T (Tube OD) | L (mm) | L1 (mm) | Ø D (mm) | H (Inch) | H1 (Inch) |
|---|---|---|---|---|---|---|
| 2F-C-2N | 1/8" | 22.1 | 17.1 | 2.3 | 3/8 | 7/16 |
| 3F-C-2N | 3/16" | 25.3 | 20.3 | 3.0 | 3/8 | 7/16 |
| 4F-C-2N | 1/4" | 29.7 | 23.1 | 3.0 | 9/16 | 1/2 |
| 4F-C-4N | 1/4" | 31.2 | 23.9 | 4.8 | 9/16 | 9/16 |
| 5F-C-2N | 5/16" | 35.2 | 28.4 | 4.8 | 9/16 | 9/16 |
| 5F-C-4N | 5/16" | 38.2 | 31.6 | 4.8 | 3/8 | 5/8 |
| 6F-C-2N | 3/8" | 35.8 | 28.4 | 4.8 | 3/8 | 9/16 |
| 6F-C-4N | 3/8" | 37.8 | 32.4 | 4.8 | 7/8 | 7/8 |
| 8F-C-2N | 1/2" | 42.4 | 35.1 | 4.8 | 1/8 | 9/16 |
| 8F-C-4N | 1/2" | 43.3 | 36.2 | 4.8 | 1/16 | 7/8 |
| 10F-C-2N | 5/8" | 47.7 | 40.4 | 7.1 | 1/16 | 1/16 |
| 10F-C-4N | 5/8" | 48.0 | 41.2 | 7.1 | 1/8 | 1/8 |
| 12F-C-2N | 3/4" | 48.3 | 38.1 | 7.1 | 1/8 | 1/8 |
| 12F-C-4N | 3/4" | 49.3 | 40.2 | 7.8 | 1/8 | 1/8 |
| 14F-C-2N | 7/8" | 49.8 | 45.3 | 15.3 | 1.5/8 | 1.5/8 |
| 16F-C-2N | 1" | 62.2 | 50.0 | 22.3 | 1.5/8 | 1/2 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|
| 3M-FC-2N | 3 mm | 22 | 17 | 2.4 | 12 | 12 |
| 4M-FC-2N | 4 mm | 25.3 | 21 | 3 | 12 | 12 |
| 6M-FC-2N | 6 mm | 29.7 | 23.1 | 4.8 | 14 | 14 |
| 8M-FC-2N | 8 mm | 37.0 | 29 | 6.4 | 16 | 16 |
| 10M-FC-2N | 10 mm | 39.4 | 31.8 | 7.9 | 19 | 22 |
| 12M-FC-2N | 12 mm | 41.9 | 33.8 | 9.5 | 22 | 25 |
| 15M-FC-2N | 15 mm | 46.7 | 38.6 | 11.9 | 27 | 30 |
| 20M-FC-2N | 20 mm | 47.9 | 38.5 | 15.9 | 32 | 38 |
| 25M-FC-2N | 25 mm | 52.3 | 50.0 | 21.8 | 41 | 38 |
