Female Tube Adaptor - NPT
Female Tube Adaptor - NPT
Tube Fittings
- Features:Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

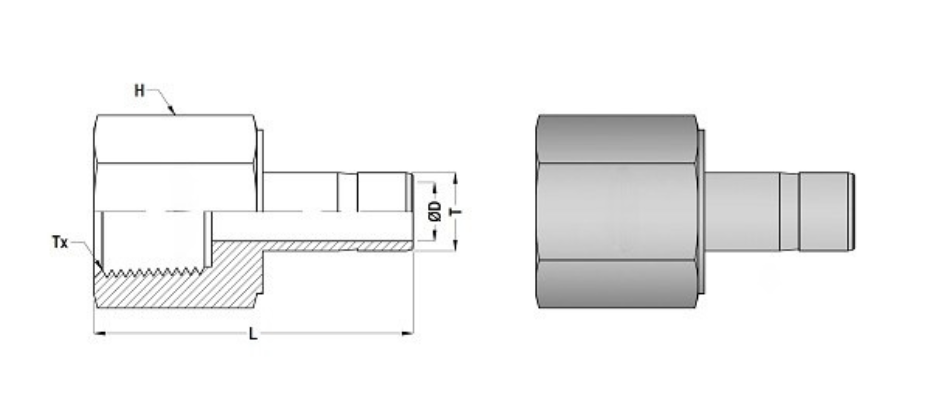

| RADILOK Part Number | T (Tube Stub) | Tx (NPT) | L (mm) | Ø D (mm) | H (Inch) |
|---|---|---|---|---|---|
| 2S-TAF-2N | 1/8" | 1/8" | 31.5 | 2.3 | 9/16 |
| 4S-TAF-2N | 1/4" | 1/8" | 35.3 | 2.3 | 3/4 |
| 4S-TAF-4N | 1/4" | 1/4" | 37.1 | 4.8 | 3/4 |
| 4S-TAF-8N | 1/4" | 3/8" | 39.4 | 4.8 | 7/8 |
| 4S-TAF-8N | 1/4" | 1/2" | 45.5 | 4.8 | 1.1/16 |
| 5S-TAF-2N | 5/16" | 1/8" | 34.3 | 6.3 | 9/16 |
| 5S-TAF-4N | 5/16" | 1/4" | 37.6 | 6.3 | 3/4 |
| 6S-TAF-2N | 3/8" | 1/8" | 34.3 | 7.1 | 9/16 |
| 6S-TAF-4N | 3/8" | 1/4" | 38.1 | 7.1 | 3/4 |
| 6S-TAF-8N | 3/8" | 3/8" | 40.4 | 7.1 | 7/8 |
| 8S-TAF-8N | 3/8" | 1/2" | 48.7 | 7.1 | 1.1/16 |
| 8S-TAF-4N | 1/2" | 1/4" | 43.4 | 9.9 | 3/4 |
| 8S-TAF-8N | 1/2" | 3/8" | 45.4 | 9.9 | 7/8 |
| 8S-TAF-8N | 1/2" | 1/2" | 51.8 | 9.9 | 1.1/16 |
| 10S-TAF-8N | 5/8" | 3/8" | 48.3 | 12.7 | 7/8 |
| 10S-TAF-8N | 5/8" | 1/2" | 53.1 | 12.7 | 1.1/16 |
| 12S-TAF-8N | 3/4" | 1/2" | 52.8 | 15.0 | 1.1/16 |
| 12S-TAF-12N | 3/4" | 3/4" | 54.9 | 15.0 | 1.5/16 |
| 12S-TAF-16N | 3/4" | 1" | 58.4 | 15.0 | 1.5/8 |
| 14S-TAF-12N | 7/8" | 3/4" | 57.1 | 17.3 | 1.5/16 |
| 18S-TAF-12N | 1" | 3/4" | 60.7 | 20.3 | 1.5/16 |
| 18S-TAF-16N | 1" | 1" | 64.3 | 20.3 | 1.5/8 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (NPT) | L (mm) | Ø D (mm) | H (mm) |
|---|---|---|---|---|---|
| 6MS-TAF-2N | 6 mm | 1/8" | 32.5 | 4.6 | 14 |
| 6MS-TAF-4N | 6 mm | 1/4" | 37.1 | 4.6 | 19 |
| 8MS-TAF-4N | 8 mm | 1/4" | 37.8 | 6.3 | 19 |
| 10MS-TAF-4N | 10 mm | 1/4" | 38.1 | 7.7 | 19 |
| 10MS-TAF-8N | 10 mm | 3/8" | 40.1 | 7.7 | 22 |
| 10MS-TAF-8N | 10 mm | 1/2" | 46.5 | 7.7 | 27 |
| 12MS-TAF-4N | 12 mm | 1/4" | 43.7 | 9.1 | 19 |
| 12MS-TAF-6N | 12 mm | 3/8" | 46.0 | 9.1 | 22 |
| 12MS-TAF-8N | 12 mm | 1/2" | 52.3 | 9.1 | 27 |
| 18MS-TAF-12N | 18 mm | 3/4" | 54.8 | 13.9 | 32 |
