Male Connector ISO Parallel - RP Type
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, NPT, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

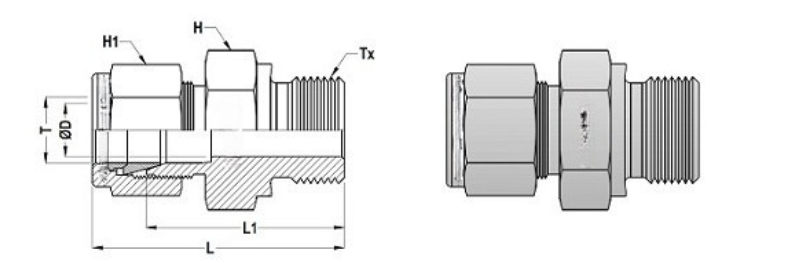

| RADILOK Part No. | T (Tube OD) | Tx (BSPP) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|
| 2-MC-2RP | 1/8" | 1/8" | 30.0 | 23.4 | 2.4 | 9/16 | 7/16 |
| 2-MC-4RP | 1/8" | 1/4" | 32.2 | 24.1 | 2.4 | 9/16 | 7/16 |
| 2-MC-6RP | 1/8" | 3/8" | 32.2 | 24.9 | 2.4 | 9/16 | 9/16 |
| 4-MC-2RP | 1/4" | 1/8" | 37.5 | 30.2 | 4.7 | 9/16 | 9/16 |
| 4-MC-4RP | 1/4" | 1/4" | 38.6 | 31.5 | 4.7 | 9/16 | 9/16 |
| 4-MC-6RP | 1/4" | 3/8" | 44.7 | 35.0 | 4.7 | 11/16 | 9/16 |
| 6-MC-2RP | 3/8" | 1/8" | 39.0 | 31.7 | 5.9 | 11/16 | 11/16 |
| 6-MC-4RP | 3/8" | 1/4" | 40.6 | 32.8 | 7.1 | 11/16 | 11/16 |
| 6-MC-6RP | 3/8" | 3/8" | 40.6 | 32.8 | 7.1 | 11/16 | 11/16 |
| 8-MC-4RP | 1/2" | 1/4" | 42.6 | 32.5 | 5.9 | 13/16 | 7/8 |
| 8-MC-6RP | 1/2" | 3/8" | 42.6 | 33.0 | 7.9 | 13/16 | 7/8 |
| 8-MC-8RP | 1/2" | 1/2" | 43.8 | 34.0 | 9.4 | 1.1/16 | 7/8 |
| 12-MC-8RP | 3/4" | 1/2" | 49.3 | 38.0 | 11.8 | 1.1/16 | 1.1/16 |
| 12-MC-12RP | 3/4" | 3/4" | 54.2 | 42.2 | 15.8 | 1.3/16 | 1.1/16 |
| 16-MC-12RP | 1" | 3/4" | 55.9 | 43.7 | 19.1 | 1.3/16 | 1.1/4 |
| 16-MC-16RP | 1" | 1" | 59.9 | 47.7 | 19.8 | 1.5/8 | 1.1/2 |
Metric Tubes
| RADILOK Part No. | T (Tube OD) | Tx (BSPP) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|---|
| 3M-MC-2RP | 3 mm | 1/8" | 30.0 | 23.4 | 2.4 | 14 | 12 |
| 4M-MC-2RP | 4 mm | 1/8" | 31.5 | 24.1 | 2.4 | 14 | 12 |
| 4M-MC-4RP | 4 mm | 1/4" | 32.8 | 24.9 | 2.4 | 14 | 14 |
| 6M-MC-2RP | 6 mm | 1/8" | 37.5 | 30.2 | 4.8 | 17 | 14 |
| 6M-MC-4RP | 6 mm | 1/4" | 38.6 | 31.5 | 4.8 | 17 | 14 |
| 6M-MC-6RP | 6 mm | 3/8" | 44.7 | 35.0 | 4.8 | 17 | 16 |
| 8M-MC-2RP | 8 mm | 1/8" | 38.2 | 25.7 | 6.0 | 19 | 16 |
| 8M-MC-4RP | 8 mm | 1/4" | 39.8 | 30.0 | 6.0 | 19 | 16 |
| 8M-MC-6RP | 8 mm | 3/8" | 42.6 | 32.5 | 6.0 | 19 | 17 |
| 8M-MC-8RP | 8 mm | 1/2" | 45.8 | 35.8 | 6.0 | 19 | 22 |
| 10M-MC-4RP | 10 mm | 1/4" | 39.8 | 30.0 | 7.9 | 22 | 19 |
| 10M-MC-6RP | 10 mm | 3/8" | 42.6 | 33.0 | 7.9 | 22 | 19 |
| 10M-MC-8RP | 10 mm | 1/2" | 46.5 | 35.8 | 7.9 | 22 | 22 |
| 10M-MC-10RP | 10 mm | 5/8" | 50.3 | 37.9 | 7.9 | 22 | 25 |
| 12M-MC-8RP | 12 mm | 1/2" | 46.5 | 35.8 | 9.5 | 22 | 22 |
| 12M-MC-10RP | 12 mm | 5/8" | 50.3 | 37.9 | 9.5 | 22 | 25 |
| 12M-MC-12RP | 12 mm | 3/4" | 53.8 | 39.8 | 9.5 | 27 | 29 |
| 16M-MC-12RP | 16 mm | 3/4" | 55.9 | 43.3 | 12.8 | 30 | 29 |
| 16M-MC-16RP | 16 mm | 1" | 60.2 | 46.3 | 12.8 | 30 | 32 |
| 18M-MC-12RP | 18 mm | 3/4" | 55.9 | 43.3 | 15.8 | 32 | 29 |
| 18M-MC-16RP | 18 mm | 1" | 60.2 | 46.3 | 15.8 | 32 | 32 |
| 20M-MC-12RP | 20 mm | 3/4" | 55.9 | 43.3 | 19.0 | 32 | 29 |
| 20M-MC-16RP | 20 mm | 1" | 60.2 | 46.3 | 19.0 | 32 | 32 |
| 22M-MC-12RP | 22 mm | 3/4" | 55.9 | 43.3 | 19.0 | 35 | 29 |
| 22M-MC-16RP | 22 mm | 1" | 60.2 | 46.3 | 19.0 | 35 | 32 |
| 22M-MC-22RP | 22 mm | 1.1/4" | 65.5 | 48.3 | 19.0 | 35 | 36 |
| 25M-MC-16RP | 25 mm | 1" | 60.1 | 47.8 | 19.8 | 38 | 41 |
