Male Connector ISO Parallel - RS Type
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, NPT, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

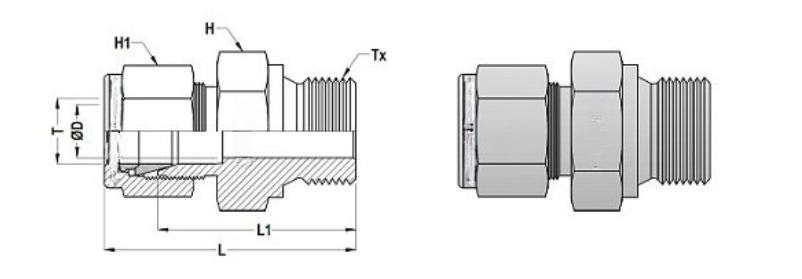

| RADILOK Part No. | T (Tube OD) | Tx (BSPP) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|
| 2-MC-2RS | 1/8" | 1/8" | 30.0 | 23.4 | 2.4 | 7/16 | 7/16 |
| 2-MC-4RS | 1/8" | 1/4" | 35.3 | 28.7 | 2.4 | 9/16 | 9/16 |
| 4-MC-2RS | 1/4" | 1/8" | 32.5 | 24.9 | 4.7 | 7/16 | 7/16 |
| 4-MC-4RS | 1/4" | 1/4" | 37.5 | 30.2 | 4.7 | 9/16 | 9/16 |
| 4-MC-6RS | 1/4" | 3/8" | 41.3 | 37.3 | 4.7 | 11/16 | 9/16 |
| 6-MC-2RS | 3/8" | 1/8" | 39.0 | 31.7 | 7.9 | 11/16 | 11/16 |
| 6-MC-4RS | 3/8" | 1/4" | 38.9 | 31.4 | 7.9 | 11/16 | 11/16 |
| 6-MC-6RS | 3/8" | 3/8" | 42.0 | 38.0 | 7.9 | 11/16 | 11/16 |
| 8-MC-4RS | 1/2" | 1/4" | 42.2 | 38.9 | 10.3 | 13/16 | 13/16 |
| 8-MC-6RS | 1/2" | 3/8" | 41.9 | 38.0 | 10.3 | 13/16 | 13/16 |
| 8-MC-8RS | 1/2" | 1/2" | 44.9 | 39.0 | 10.3 | 13/16 | 13/16 |
| 12-MC-8RS | 3/4" | 1/2" | 49.0 | 38.9 | 13.0 | 1 1/16 | 1 1/16 |
| 12-MC-12RS | 3/4" | 3/4" | 52.0 | 42.0 | 13.0 | 1 1/8 | 1 1/8 |
| 16-MC-8RS | 1" | 1/2" | 52.9 | 43.7 | 19.3 | 1 3/8 | 1 3/8 |
| 16-MC-16RS | 1" | 1" | 59.9 | 47.7 | 19.3 | 1 1/2 | 1 1/2 |
Metric Tubes
| RADILOK Part No. | T (Tube OD) | Tx (BSPP) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|---|
| 3M-MC-2RS | 3 mm | 1/8" | 30.0 | 23.4 | 2.4 | 14 | 12 |
| 3M-MC-4RS | 3 mm | 1/4" | 35.3 | 28.7 | 2.4 | 19 | 12 |
| 4M-MC-2RS | 4 mm | 1/8" | 32.5 | 24.9 | 2.4 | 14 | 12 |
| 6M-MC-2RS | 6 mm | 1/8" | 39.0 | 31.7 | 4.8 | 19 | 14 |
| 6M-MC-4RS | 6 mm | 1/4" | 37.5 | 30.2 | 4.8 | 19 | 14 |
| 6M-MC-6RS | 6 mm | 3/8" | 38.9 | 31.5 | 4.8 | 19 | 16 |
| 8M-MC-2RS | 8 mm | 1/8" | 46.0 | 37.0 | 6.3 | 22 | 16 |
| 8M-MC-4RS | 8 mm | 1/4" | 38.5 | 31.0 | 6.3 | 19 | 16 |
| 8M-MC-6RS | 8 mm | 3/8" | 42.0 | 38.0 | 6.3 | 22 | 19 |
| 8M-MC-8RS | 8 mm | 1/2" | 44.7 | 37.3 | 6.3 | 22 | 19 |
| 10M-MC-2RS | 10 mm | 1/8" | 46.0 | 37.0 | 7.9 | 22 | 19 |
| 10M-MC-4RS | 10 mm | 1/4" | 38.5 | 31.0 | 7.9 | 22 | 19 |
| 10M-MC-6RS | 10 mm | 3/8" | 42.0 | 38.0 | 7.9 | 22 | 19 |
| 10M-MC-8RS | 10 mm | 1/2" | 46.5 | 38.9 | 7.9 | 22 | 22 |
| 12M-MC-12RS | 12 mm | 3/4" | 52.2 | 42.0 | 9.5 | 27 | 25 |
| 16M-MC-6RS | 16 mm | 3/8" | 39.0 | 31.9 | 12.7 | 24 | 25 |
| 16M-MC-8RS | 16 mm | 1/2" | 49.0 | 38.9 | 12.7 | 29 | 27 |
| 18M-MC-8RS | 18 mm | 1/2" | 47.7 | 39.0 | 13.0 | 29 | 27 |
| 18M-MC-12RS | 18 mm | 3/4" | 52.2 | 42.0 | 13.0 | 32 | 32 |
| 20M-MC-8RS | 20 mm | 1/2" | 50.5 | 40.0 | 15.0 | 32 | 32 |
| 20M-MC-12RS | 20 mm | 3/4" | 52.2 | 42.0 | 15.0 | 32 | 32 |
| 22M-MC-12RS | 22 mm | 3/4" | 52.2 | 42.0 | 16.0 | 35 | 32 |
| 22M-MC-16RS | 22 mm | 1" | 56.3 | 45.2 | 18.3 | 41 | 35 |
| 25M-MC-12RS | 25 mm | 3/4" | 57.5 | 45.3 | 19.3 | 41 | 35 |
| 25M-MC-16RS | 25 mm | 1" | 60.1 | 47.8 | 19.3 | 41 | 38 |
