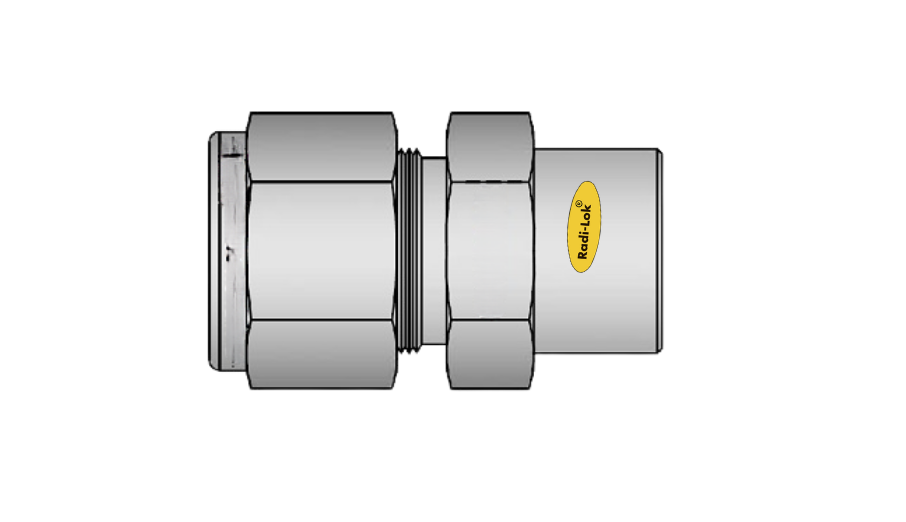

Male Connector Socket Weld
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, UF, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

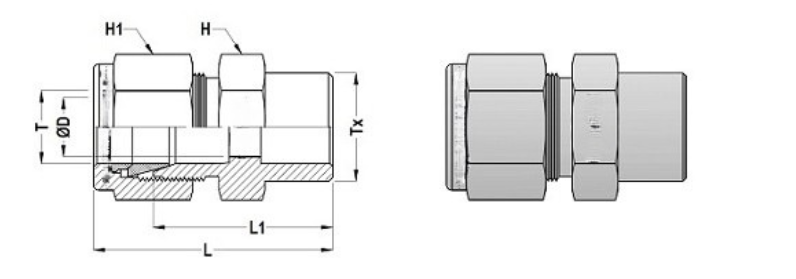

| RADILOK Part No. | T (Tube OD) | Tx (Socket Weld) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|
| 2-MC-2SW | 1/8" | 1/8" | 28.9 | 22.3 | 2.3 | 7/16 | 7/16 |
| 4-MC-4SW | 1/4" | 1/4" | 33.5 | 26.2 | 4.8 | 1/2 | 9/16 |
| 6-MC-6SW | 3/8" | 3/8" | 37.6 | 30.2 | 7.1 | 5/8 | 11/16 |
| 8-MC-8SW | 1/2" | 1/2" | 41.1 | 31.0 | 10.4 | 13/16 | 7/8 |
| 12-MC-12SW | 3/4" | 3/4" | 43.4 | 33.3 | 15.7 | 1.1/16 | 1 |
| 16-MC-16SW | 1" | 1" | 52.6 | 40.4 | 22.3 | 1.3/8 | 1.1/2 |
