Male Connector – UF
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, UF, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

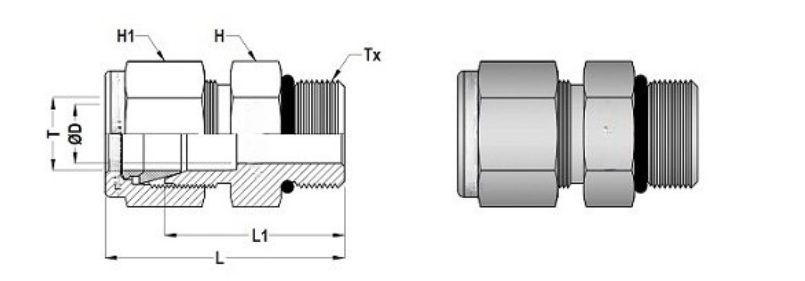

| RADILOK Part Number | T (Tube OD) | Tx | Tx (UN/UNF-2A) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|---|
| 2-MC-2UF | 1/8" | 1/8" | 5/16-24 | 30.0 | 23.4 | 2.3 | 7/16 | 7/16 |
| 4-MC-4UF | 1/4" | 1/4" | 7/16-20 | 35.6 | 26.7 | 4.8 | 7/16 | 9/16 |
| 6-MC-4UF | 3/8" | 1/4" | 9/16-18 | 35.6 | 28.2 | 6.4 | 9/16 | 11/16 |
| 4-MC-6UF | 1/4" | 3/8" | 3/4-16 | 37.5 | 30.2 | 4.8 | 7/8 | 9/16 |
| 6-MC-6UF | 3/8" | 3/8" | 9/16-18 | 37.8 | 31.2 | 7.1 | 11/16 | 11/16 |
| 5-MC-5UF | 5/16" | 5/16" | 1/2-20 | 34.8 | 27.4 | 6.3 | 5/8 | 5/8 |
| 6-MC-4UF | 3/8" | 1/4" | 7/16-20 | 35.6 | 28.2 | 5.0 | 5/8 | 11/16 |
| 6-MC-6UF | 3/8" | 3/8" | 9/16-18 | 39.1 | 31.7 | 7.1 | 11/16 | 11/16 |
| 6-MC-8UF | 3/8" | 1/2" | 3/4-16 | 42.2 | 34.8 | 7.1 | 13/16 | 13/16 |
| 8-MC-6UF | 1/2" | 3/8" | 9/16-18 | 42.2 | 34.8 | 10.4 | 13/16 | 11/16 |
| 8-MC-8UF | 1/2" | 1/2" | 3/4-16 | 44.9 | 34.8 | 10.7 | 15/16 | 7/8 |
| 8-MC-10UF | 1/2" | 5/8" | 7/8-14 | 44.9 | 34.8 | 10.7 | 15/16 | 7/8 |
| 8-MC-12UF | 1/2" | 3/4" | 1.1/16-12 | 49.3 | 38.0 | 10.7 | 1.1/4 | 1 |
| 10-MC-8UF | 5/8" | 1/2" | 3/4-16 | 48.9 | 31.7 | 13.7 | 15/16 | 1 |
| 10-MC-10UF | 5/8" | 5/8" | 7/8-14 | 45.2 | 35.0 | 12.7 | 15/16 | 1 |
| 12-MC-8UF | 3/4" | 1/2" | 3/4-16 | 48.9 | 31.7 | 15.7 | 15/16 | 1 |
| 12-MC-12UF | 3/4" | 3/4" | 1.1/16-12 | 49.9 | 38.0 | 15.7 | 1.1/4 | 1.1/8 |
| 12-MC-14UF | 3/4" | 7/8" | 1.3/16-12 | 50.8 | 38.9 | 15.7 | 1.1/4 | 1.3/16 |
| 14-MC-12UF | 7/8" | 3/4" | 1.1/16-12 | 50.8 | 38.9 | 18.8 | 1.1/4 | 1.1/4 |
| 16-MC-12UF | 1" | 3/4" | 1.1/16-12 | 53.3 | 41.3 | 21.3 | 1.1/4 | 1.3/8 |
| 16-MC-16UF | 1" | 1" | 1.5/16-12 | 54.3 | 42.2 | 22.3 | 1.1/2 | 1.1/2 |
