Reducing Bulkhead Union
Tube Fittings
Gaugesbility
Interchangeability
Low Torque
Positive Leak-Free Seal
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
End Connections: RADILOK Tube Fitting, NFT Pipe Thread, ISO 771 Tapered Thread, ISO
228/1 Parallel Thread
Fractional Tubes

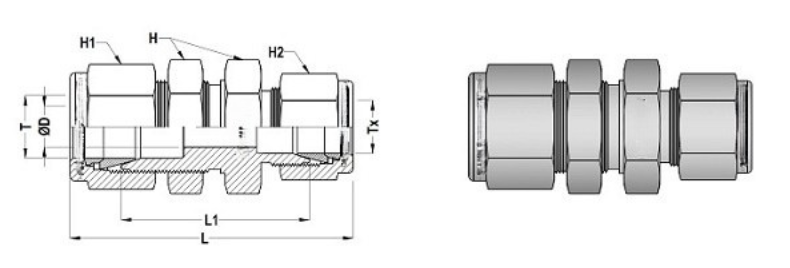

| RADILOK Part No. | Tube OD (T) | Tube OD (Tx) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) | H2 (inch) |
|---|---|---|---|---|---|---|---|---|
| 4-BRU-2 | 1/4" | 1/8" | 55.1 | 41.1 | 2.3 | 5/8 | 9/16 | 7/16 |
| 6-BRU-4 | 3/8" | 1/4" | 60.7 | 48.0 | 4.8 | 3/4 | 11/16 | 9/16 |
| 8-BRU-4 | 1/2" | 1/4" | 66.8 | 49.3 | 4.8 | 15/16 | 7/8 | 9/16 |
* Dimensions are for reference only. Subject to change.
