Equal Union
Tube Fittings
Gangesbilly
Interchangeability
Low Torque
Positive Leak-Free Seal
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
End Connections: RADILOK Tube Fitting, NFI Type Thread (ISO 771 Tagered Thread, ISO
22871 Parallel Thread)
Fractional Tubes

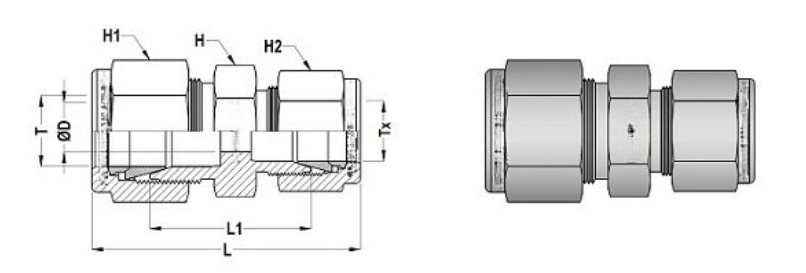

| RADILOK Part No. | Tube OD (T) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|
| 4-RU-4 | 1/4" | 38.6 | 24.6 | 2.3 | 1/2 | 9/16 |
| 4-RU-3 | 3/16" | 39.4 | 25.4 | 3.0 | 1/2 | 9/16 |
| 5-RU-2 | 1/8" | 39.6 | 25.4 | 3.0 | 1/2 | 9/16 |
| 5-RU-4 | 1/4" | 42.2 | 27.4 | 4.8 | 5/8 | 9/16 |
| 6-RU-6 | 3/8" | 42.9 | 29.9 | 6.3 | 5/8 | 11/16 |
| 6-RU-4 | 1/4" | 43.2 | 28.4 | 4.8 | 5/8 | 11/16 |
| 6-RU-5 | 5/16" | 44.2 | 29.5 | 6.3 | 5/8 | 11/16 |
| 8-RU-4 | 1/4" | 46.2 | 30.2 | 4.8 | 11/16 | 7/8 |
| 8-RU-6 | 3/8" | 47.0 | 30.5 | 7.1 | 11/16 | 7/8 |
| 10-RU-8 | 1/2" | 49.3 | 31.7 | 10.4 | 15/16 | 1 |
| 10-RU-6 | 3/8" | 49.5 | 31.7 | 7.1 | 15/16 | 11/16 |
| 12-RU-4 | 1/4" | 49.3 | 31.7 | 4.8 | 1.1/16 | 1.1/8 |
| 12-RU-6 | 3/8" | 50.8 | 33.3 | 7.1 | 1.1/16 | 1.1/8 |
| 12-RU-8 | 1/2" | 52.3 | 33.8 | 10.4 | 1.1/8 | 1.1/8 |
| 12-RU-10 | 5/8" | 53.3 | 33.8 | 12.7 | 1.1/16 | 1 |
| 16-RU-8 | 1/2" | 62.7 | 39.0 | 15.7 | 1.3/8 | 1.3/8 |
| 16-RU-12 | 3/4" | 62.7 | 39.0 | 15.7 | 1.3/8 | 1.1/8 |
Metric Tubes
| RADILOK Part No. | Tube OD (T) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|
| 6M-RU-3M | 6 mm | 38.6 | 24.6 | 2.4 | 14 | 12 |
| 6M-RU-4M | 6 mm | 39.4 | 25.4 | 2.4 | 14 | 12 |
| 10M-RU-6M | 10 mm | 44.5 | 29.5 | 4.8 | 19 | 17 |
| 10M-RU-8M | 10 mm | 45.1 | 30.0 | 6.4 | 19 | 17 |
| 12M-RU-6M | 12 mm | 47.0 | 29.5 | 4.8 | 22 | 22 |
| 12M-RU-8M | 12 mm | 47.8 | 30.2 | 6.4 | 22 | 22 |
| 12M-RU-10M | 12 mm | 48.7 | 31.0 | 9.5 | 22 | 24 |
| 18M-RU-12M | 18 mm | 52.0 | 31.8 | 11.9 | 28 | 30 |
| 25M-RU-18M | 25 mm | 65.0 | 39.8 | 15.9 | 35 | 35 |
| 25M-RU-20M | 25 mm | 82.3 | 39.8 | 15.9 | 35 | 32 |
