Tube Reducer
Tube Reducer
Tube Fittings
- Features:Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

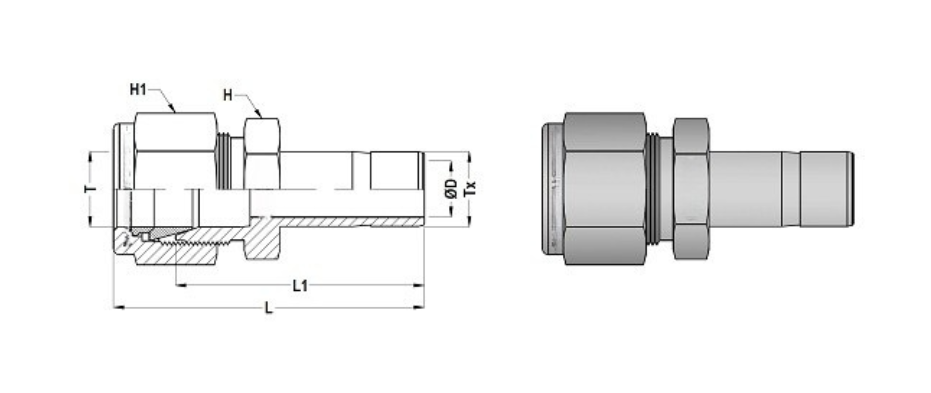

| RADILOK Part Number | T (Tube Stub) | Tx (Stub) | L (mm) | L1 (mm) | Ø D (mm) | H (Inch) |
|---|---|---|---|---|---|---|
| 2-TR-2S | 1/8" | 1/8" | 33.5 | 26.5 | 2.0 | 7/16 |
| 2-TR-4S | 1/8" | 1/4" | 36.1 | 29.5 | 2.3 | 7/16 |
| 2-TR-6S | 1/8" | 3/8" | 37.6 | 31.0 | 2.3 | 7/16 |
| 2-TR-8S | 1/8" | 1/2" | 44.2 | 37.6 | 2.3 | 9/16 |
| 3-TR-2S | 3/16" | 1/8" | 34.8 | 28.2 | 2.0 | 7/16 |
| 3-TR-4S | 3/16" | 1/4" | 37.1 | 30.5 | 3.0 | 7/16 |
| 4-TR-2S | 1/4" | 1/8" | 36.8 | 29.5 | 2.0 | 1/2 |
| 4-TR-4S | 1/4" | 1/4" | 39.1 | 31.7 | 4.8 | 1/2 |
| 4-TR-5S | 1/4" | 5/16" | 39.8 | 32.5 | 4.8 | 1/2 |
| 4-TR-6S | 1/4" | 3/8" | 40.6 | 33.3 | 4.8 | 1/2 |
| 4-TR-8S | 1/4" | 1/2" | 46.2 | 38.5 | 4.8 | 9/16 |
| 4-TR-10S | 1/4" | 5/8" | 48.0 | 40.6 | 4.8 | 11/16 |
| 4-TR-12S | 1/4" | 3/4" | 47.7 | 41.4 | 4.8 | 13/16 |
| 6-TR-6S | 3/8" | 3/8" | 43.2 | 35.8 | 7.1 | 5/8 |
| 6-TR-8S | 3/8" | 1/2" | 48.5 | 41.1 | 7.1 | 5/8 |
| 6-TR-10S | 3/8" | 5/8" | 50.3 | 42.9 | 7.1 | 11/16 |
| 6-TR-12S | 3/8" | 3/4" | 50.3 | 42.9 | 7.1 | 13/16 |
| 8-TR-4S | 1/2" | 1/4" | 44.9 | 34.8 | 4.8 | 7/16 |
| 8-TR-6S | 1/2" | 3/8" | 46.7 | 36.6 | 7.1 | 13/16 |
| 8-TR-8S | 1/2" | 1/2" | 52.3 | 42.2 | 9.9 | 13/16 |
| 8-TR-10S | 1/2" | 5/8" | 53.8 | 43.7 | 10.4 | 13/16 |
| 8-TR-12S | 1/2" | 3/4" | 53.8 | 43.7 | 10.4 | 13/16 |
| 8-TR-16S | 1/2" | 1" | 60.2 | 50.0 | 10.4 | 1.1/16 |
| 10-TR-12S | 5/8" | 3/4" | 54.6 | 44.4 | 12.7 | 15/16 |
| 10-TR-16S | 5/8" | 1" | 61.0 | 50.8 | 12.7 | 1.1/16 |
| 12-TR-8S | 3/4" | 1/2" | 54.6 | 44.4 | 9.9 | 1.1/16 |
| 12-TR-16S | 3/4" | 1" | 62.5 | 52.3 | 15.7 | 1.1/16 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (Stub) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) |
|---|---|---|---|---|---|---|
| 3M-TR-6MS | 3 mm | 6 mm | 36.1 | 29.5 | 2.4 | 12 |
| 3M-TR-10MS | 3 mm | 10 mm | 38.4 | 31.8 | 2.4 | 12 |
| 4M-TR-6MS | 4 mm | 6 mm | 37.1 | 30.5 | 2.4 | 12 |
| 6M-TR-8MS | 6 mm | 8 mm | 35.9 | 32.5 | 4.8 | 14 |
| 6M-TR-10MS | 6 mm | 10 mm | 40.7 | 33.3 | 4.8 | 14 |
| 6M-TR-12MS | 6 mm | 12 mm | 46.3 | 38.9 | 4.8 | 14 |
| 8M-TR-8MS | 8 mm | 8 mm | 40.3 | 32.8 | 4.6 | 16 |
| 8M-TR-10MS | 8 mm | 10 mm | 42.0 | 34.5 | 6.4 | 16 |
| 8M-TR-12MS | 8 mm | 12 mm | 47.6 | 40.1 | 6.4 | 16 |
| 10M-TR-8MS | 10 mm | 6 mm | 42.4 | 34.8 | 4.6 | 19 |
| 10M-TR-8MS | 10 mm | 8 mm | 43.4 | 35.8 | 6.4 | 19 |
| 10M-TR-10MS | 10 mm | 12 mm | 49.8 | 42.2 | 7.9 | 19 |
| 10M-TR-15MS | 10 mm | 15 mm | 51.3 | 43.7 | 7.9 | 19 |
| 10M-TR-18MS | 10 mm | 18 mm | 51.3 | 43.7 | 7.9 | 22 |
| 12M-TR-8MS | 12 mm | 6 mm | 44.9 | 34.8 | 4.6 | 22 |
| 12M-TR-8MS | 12 mm | 8 mm | 45.9 | 35.8 | 6.4 | 22 |
| 12M-TR-10MS | 12 mm | 10 mm | 46.7 | 36.6 | 7.7 | 22 |
| 12M-TR-16MS | 12 mm | 16 mm | 53.8 | 43.7 | 9.5 | 22 |
| 12M-TR-18MS | 12 mm | 18 mm | 53.8 | 43.7 | 9.5 | 22 |
| 12M-TR-20MS | 12 mm | 20 mm | 56.1 | 46.0 | 9.5 | 22 |
| 12M-TR-25MS | 12 mm | 25 mm | 62.4 | 52.3 | 9.5 | 27 |
| 16M-TR-12MS | 16 mm | 12 mm | 53.0 | 42.9 | 9.1 | 24 |
| 18M-TR-12MS | 18 mm | 12 mm | 54.6 | 44.5 | 9.1 | 27 |
| 18M-TR-16MS | 18 mm | 16 mm | 56.1 | 46.0 | 12.7 | 27 |
| 18M-TR-20MS | 18 mm | 20 mm | 57.6 | 47.5 | 15.1 | 27 |
| 18M-TR-25MS | 18 mm | 25 mm | 62.4 | 52.3 | 15.1 | 27 |
| 20M-TR-16MS | 20 mm | 16 mm | 57.9 | 47.8 | 12.7 | 30 |
| 20M-TR-18MS | 20 mm | 18 mm | 57.9 | 47.8 | 13.9 | 30 |
| 20M-TR-20MS | 20 mm | 25 mm | 64.2 | 54.1 | 15.8 | 30 |
| 20M-TR-22MS | 22 mm | 18 mm | 57.9 | 47.8 | 13.9 | 30 |
| 22M-TR-20MS | 22 mm | 20 mm | 58.4 | 49.3 | 15.1 | 30 |
| 22M-TR-25MS | 22 mm | 25 mm | 64.2 | 54.1 | 18.3 | 30 |
| 25M-TR-18MS | 25 mm | 18 mm | 63.1 | 50.8 | 13.9 | 35 |
| 25M-TR-20MS | 25 mm | 20 mm | 64.6 | 52.3 | 15.1 | 35 |
