Adjustable Male Run Tee
Adjustable Male Run Tee
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

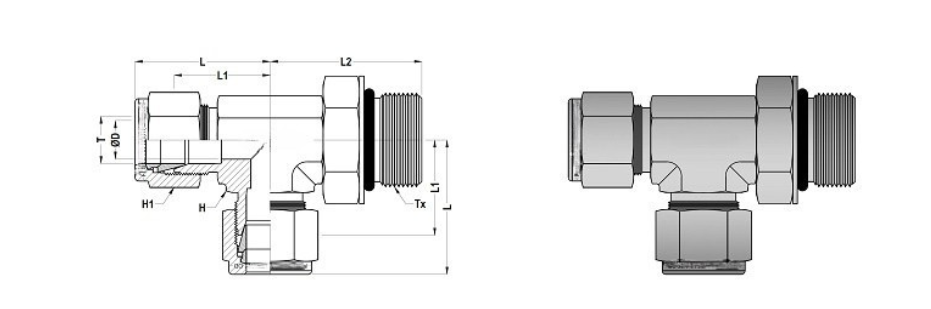

| RADILOK Part Number | T (Tube OD) | Tx | Tx (UN/UNF-2A) | L (mm) | L1 (mm) | L2 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|---|---|
| 4-AMRT-4UF | 1/4" | 1/4" | 7/16"-20 | 28.4 | 21.1 | 28.4 | 4.8 | 1/2 | 9/16 |
