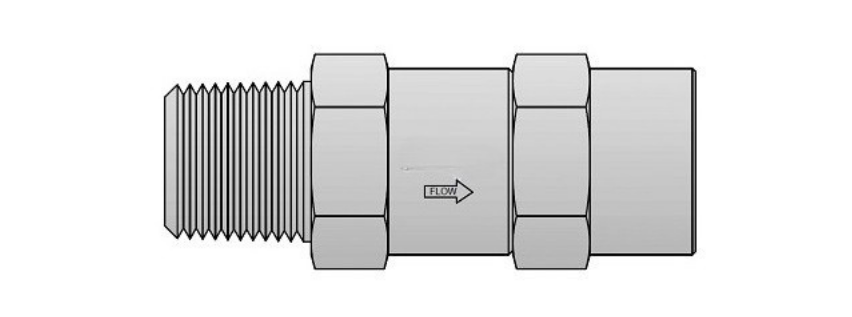

Check Valve - NPT Male X NPT Female
Check Valve - NPT Male X NPT Female
.png)
Application:
- These valves are used in process control, instrumentation and flow control applications.
- ABCD
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Each valve is 100% factory tested for cracking pressure & reseal.

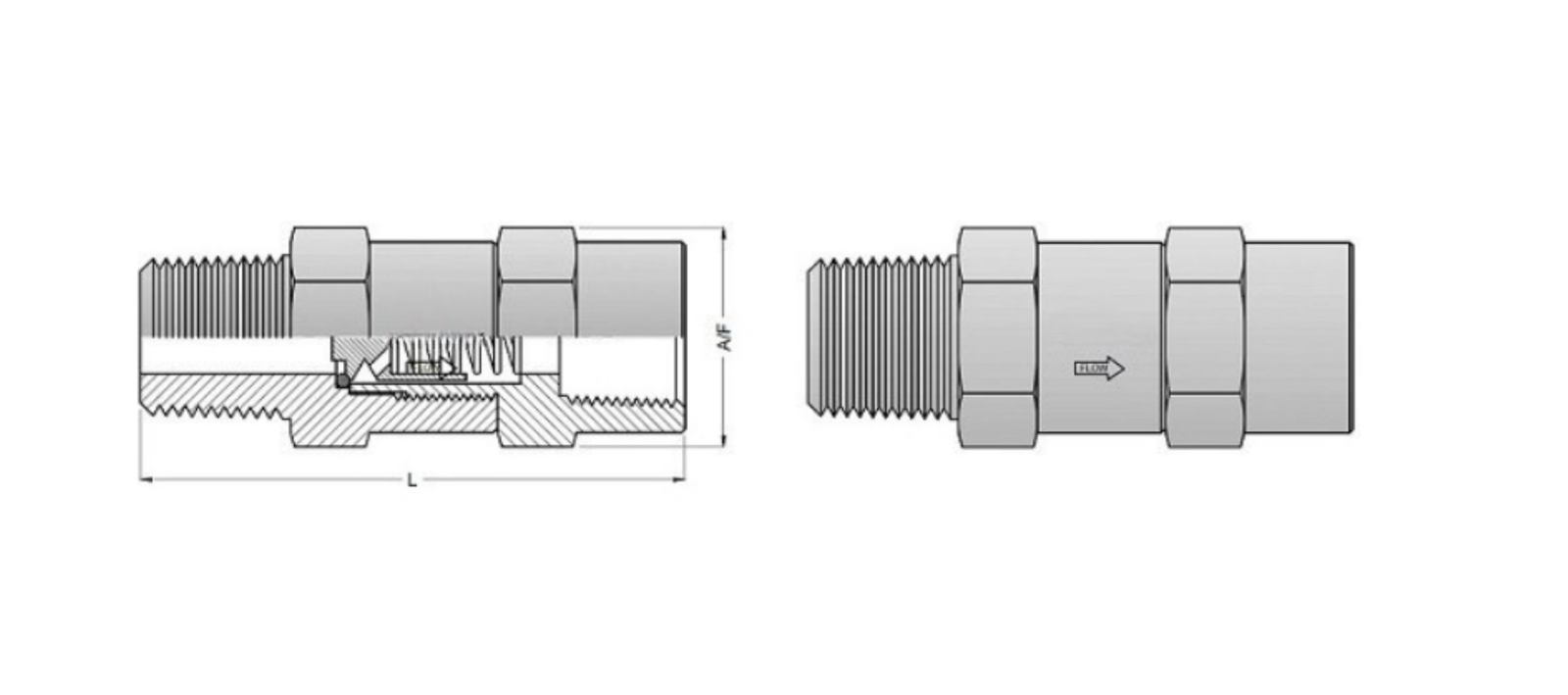

Check Valve - NPT Male X NPT Female
| RADILOK Part Number | Inlet End Connection | L (mm) | A/F (mm) | |
|---|---|---|---|---|
| Inlet | Outlet | |||
| CV-2N-F | 1/8" | 1/8" | 50 | 19.0 |
| CV-4N-F | 1/4" | 1/4" | 60 | 19.0 |
| CV-6N-F | 3/8" | 3/8" | 60 | 22.0 |
| CV-8N-F | 1/2" | 1/2" | 84 | 32.0 |
| CV-12N-F | 3/4" | 3/4" | 84 | 35.0 |
| CV-16N-F | 1" | 1" | 99 | 40.5 |
