Front Ferrule
Front Ferrule
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

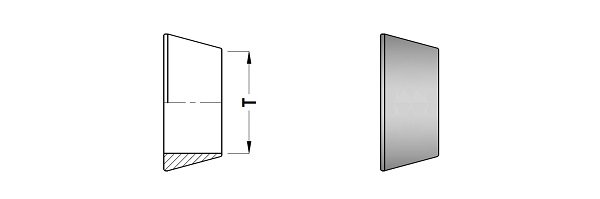

| RADILOK Part Number | T (Tube OD) |
|---|---|
| 1-FF | 1/16" |
| 2-FF | 1/8" |
| 4-FF | 1/4" |
| 5-FF | 5/16" |
| 6-FF | 3/8" |
| 8-FF | 1/2" |
| 10-FF | 5/8" |
| 12-FF | 3/4" |
| 14-FF | 7/8" |
| 16-FF | 1" |
Metric Tubes
| RADILOK Part Number | T (Tube OD) |
|---|---|
| 3M-FF | 3mm |
| 6M-FF | 6mm |
| 8M-FF | 8mm |
| 10M-FF | 10mm |
| 12M-FF | 12mm |
| 14M-FF | 14mm |
| 15M-FF | 15mm |
| 16M-FF | 16mm |
| 18M-FF | 18mm |
| 20M-FF | 20mm |
| 22M-FF | 22mm |
| 25M-FF | 25mm |
