Gauge Valve - 1 (GV1)
Gauge Valve - 1 (GV1)

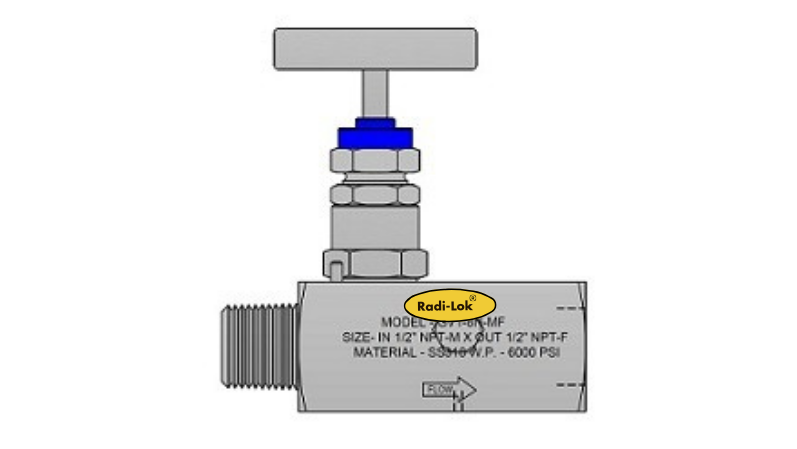

 (2).png)
Application:
- A safe & economical method of installing pressure switches, gauges and differential transmitters block and bleed for purge valve, sampling lie and safe pressure source.
- Standard pressure rating up to 6000 psi (413 bars).
- Standard PTFE packing and optional Graphoil packing for higher temperature services.
- Temperature rating for PTFE 450°F (232°C) & for Graphoil 1000°F (538°F).
Features:
- Outside screwed bonnet design.
- Back seating of stem in fully open position prevents stem back-out.
- All types of valves have a self-centering, non-rotating needle on the valve seat, alternative seating to choose for every application requiring bubble tight shut-off.
- Safety stop pin (SS316 pin prevents detachment of the bonnet from the body due to vibrations).
- Bonnet-to-body seat, metal to metal seal eliminates the need of 'O'-Ring seals.
- Dust cap with colour identification.
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

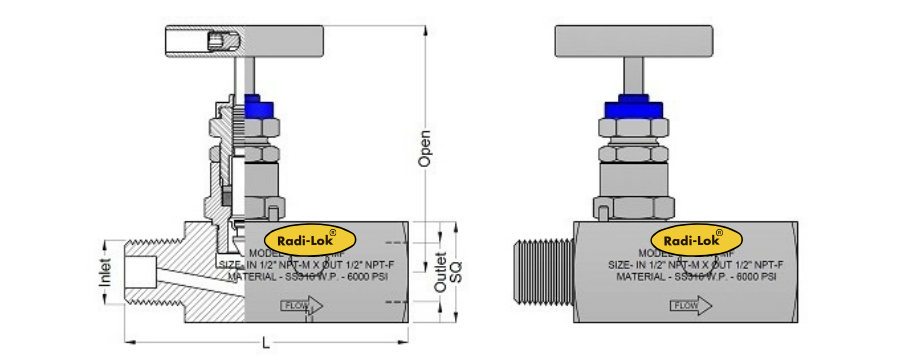

 Main View.png)
Gauge Valve - NPT Male X NPT Female
| RADILOK Part Number | End Connection | SQ (mm) | L (mm) | Open (mm) | Orifice (mm) | Cv | |
|---|---|---|---|---|---|---|---|
| Inlet | Outlet | ||||||
| GV1-8N-MF | 1/2" | 1/2" | 32 | 90 | 78.5 | 5 | -- |
| GV1-12N-8N-MF | 3/4" | 1/2" | 32 | 90 | 78.5 | 5 | -- |
| GV1-M20-MF | M20 | M20 | 32 | 75 | 78.5 | 5 | -- |
