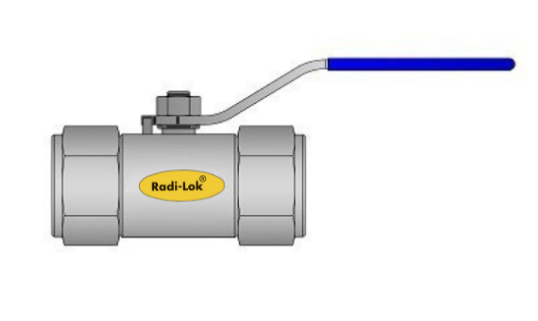

High Pressure Ball Valve - Female X Female
High Pressure Ball Valve - Female X Female
.png)
Application:
- Most demanding applications in oil, gas & process control application.
- Three piece design for ease of maintenance.
- Anti-blow out internally loaded stem for safety.
- High flow rate with maximum orifice.
- Bi-directional floating ball design to ensure leak-proof shut-off.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Standard DELRIN ball seat packing and optional PEEK or PCTFE ball seat packing.
- Temperature rating for DELRIN packing 176°F (80°C), for PEEK packing 500°F (260°C) & PCTFE packing 500°F (260°C).
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.
High Pressure Ball Valve - Female X Female

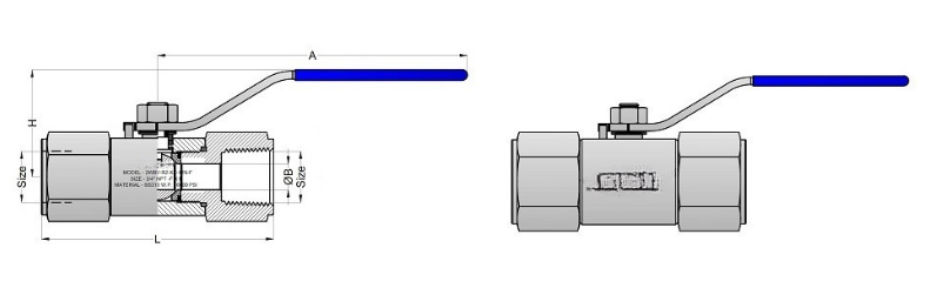

| RADILOK Part Number | End Connection | Ø B (mm) | L (mm) | A (mm) | H (mm) | |
|---|---|---|---|---|---|---|
| Size | Size | |||||
| 2WBV-R1-4N-F | 1/4" | 1/4" | 9.5 | 68.0 | 113.5 | 39.5 |
| 2WBV-R1-4G-F | 1/4" | 1/4" | 9.5 | 64.0 | 113.5 | 39.5 |
| 2WBV-R1-6N-F | 3/8" | 3/8" | 9.5 | 74.0 | 113.5 | 39.5 |
| 2WBV-R1-6G-F | 3/8" | 3/8" | 9.5 | 74.0 | 113.5 | 39.5 |
| 2WBV-R1-8N-F | 1/2" | 1/2" | 9.5 | 85.0 | 113.5 | 39.5 |
| 2WBV-R1-8G-F | 1/2" | 1/2" | 9.5 | 77.0 | 113.5 | 39.5 |
| 2WBV-R2-12N-F | 3/4" | 3/4" | 12.7 | 95.0 | 113.5 | 43.2 |
| 2WBV-R2-12G-F | 3/4" | 3/4" | 12.7 | 85.0 | 113.5 | 43.2 |
| 2WBV-R3-16N-F | 1" | 1" | 19.0 | 115.0 | 145.0 | 49.8 |
| 2WBV-R3-16G-F | 1" | 1" | 19.0 | 109.4 | 145.0 | 49.8 |
