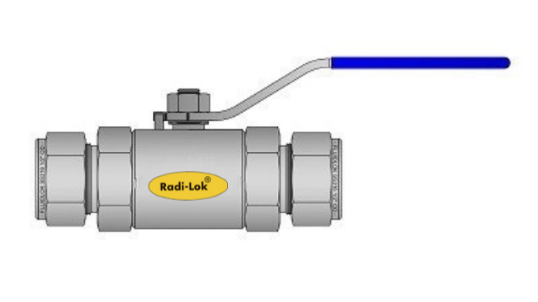

High Pressure Ball Valve - RADILOK Tube OD X Tube OD
High Pressure Ball Valve - RADILOK Tube OD X Tube OD
.png)
Application:
- Most demanding applications in oil, gas & process control application.
- Three piece design for ease of maintenance.
- Anti-blow out internally loaded stem for safety.
- High flow rate with maximum orifice.
- Bi-directional floating ball design to ensure leak-proof shut-off.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Standard DELRIN ball seat packing and optional PEEK or PCTFE ball seat packing.
- Temperature rating for DELRIN packing 176°F (80°C), for PEEK packing 500°F (260°C) & PCTFE packing 500°F (260°C).
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

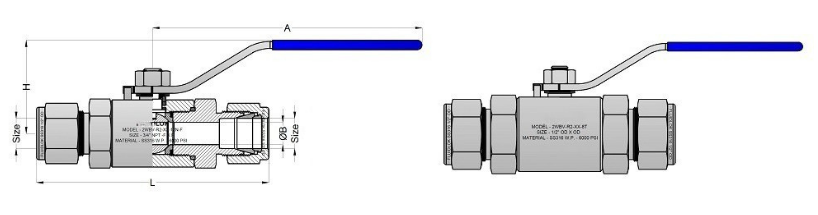

High Pressure Ball Valve - RADILOK Tube OD X Tube OD
| RADILOK Part Number | End Connection | Ø B (mm) | L (mm) | A (mm) | H (mm) | |
|---|---|---|---|---|---|---|
| Size | Size | |||||
| 2WBV-R1-4T | 1/4" | 1/4" | 9.5 | -- | 113.5 | 39.5 |
| 2WBV-R1-6T | 3/8" | 3/8" | 7.0 | 92.3 | 113.5 | 39.5 |
| 2WBV-R1-8T | 1/2" | 1/2" | 9.5 | 98.0 | 113.5 | 39.5 |
| 2WBV-R2-12T | 3/4" | 3/4" | 12.7 | 108.0 | 113.5 | 43.2 |
| 2WBV-R3-16T | 1" | 1" | 19.0 | 107.4 | 145.0 | 49.8 |
| 2WBV-R1-6MT | 6 mm | 6 mm | -- | -- | 113.5 | 39.5 |
| 2WBV-R1-8MT | 8 mm | 8 mm | -- | -- | 113.5 | 39.5 |
| 2WBV-R1-10MT | 10 mm | 10 mm | 7.0 | 92.3 | 113.5 | 39.5 |
| 2WBV-R1-12MT | 12 mm | 12 mm | 9.5 | 95.0 | 113.5 | 39.5 |
| 2WBV-R1-15MT | 15 mm | 15 mm | 9.5 | 98.0 | 113.5 | 39.5 |
| 2WBV-R2-20MT | 20 mm | 20 mm | 12.7 | 108.0 | 113.5 | 43.2 |
| 2WBV-R2-22MT | 22 mm | 22 mm | 19.0 | 107.4 | 145.0 | 49.8 |
