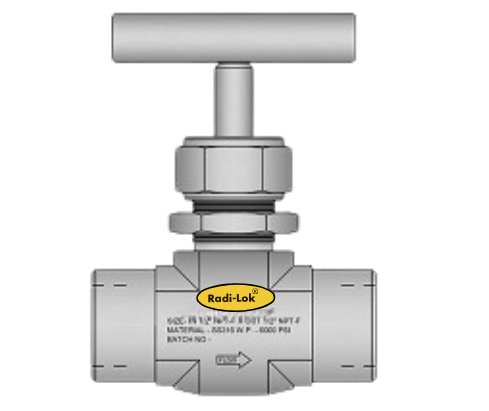

Integral Bonnet Needle Valve - Female X Female
Integral Bonnet Needle Valve - Female X Female
.png)
Application:
- Wide range of general purpose in liquid & gas handling applications.
- Integral Bonnet Needle Valve Forged Body designed in inline & angle flow pattern.
- Back seating of stem in fully open position prevents stem back out.
- Standard metal seal for pressure tightness at elevated temperatures.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Standard PTFE packing and optional Graphoil packing for higher temperature services.
- Temperature rating for PTFE 450°F (232°C) & for Graphoil 1000°F (538°F).
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

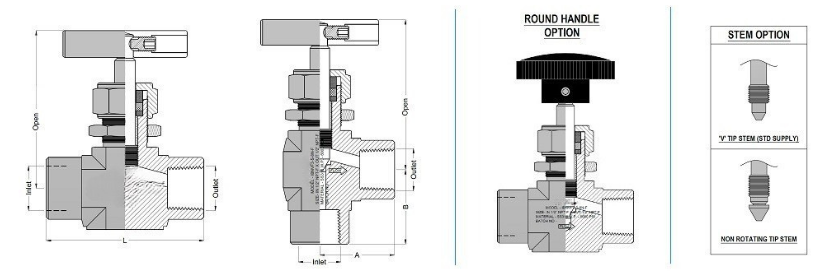

Integral Bonnet Needle Valve - Female X Female
| RADILOK Part Number | End Connection | L (mm) | A (mm) | B (mm) | Open (mm) | Orifice (mm) | Cv | ||
|---|---|---|---|---|---|---|---|---|---|
| Straight Pattern | Angle Pattern | Inlet | Outlet | ||||||
| IBNVF1-S-2N-F | IBNVF1-A-2N-F | 1/8" NPT | 1/8" NPT | 42 | 21.0 | 21.0 | 58.3 | 4 | 0.35 |
| IBNVF2-S-4N-F | IBNVF2-A-4N-F | 1/4" NPT | 1/4" NPT | 53 | 26.5 | 26.5 | 63.5 | 5 | -- |
| IBNVF3-S-6N-F | IBNVF3-A-6N-F | 3/8" NPT | 3/8" NPT | 65 | 28.8 | 28.8 | 79.0 | 6 | 0.85 |
| IBNVF3-S-8N-F | IBNVF3-A-8N-F | 1/2" NPT | 1/2" NPT | 76 | 38.0 | 38.0 | 79.0 | 6 | 0.85 |
| IBNVF4-S-12N-F | IBNVF4-A-12N-F | 3/4" NPT | 3/4" NPT | 75 | 37.5 | 37.5 | 84.2 | 8 | 1.20 |
| IBNVF4-S-16N-F | IBNVF4-A-16N-F | 1" NPT | 1" NPT | 86 | 43.0 | 43.0 | 84.2 | 8 | 1.20 |
