Male Elbow Socket Weld
Male Elbow Socket Weld
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

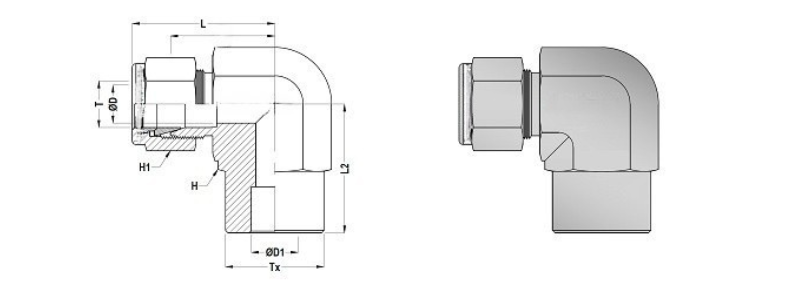

| RADILOK Part Number | T (Tube OD) | Tx (Socket Weld) | L (mm) | L1 (mm) | L2 (mm) | Ø D (mm) | Ø D1 (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|---|---|
| 4-ME-4SW | 1/4" | 1/4" | 26.9 | 19.5 | 19.5 | 4.8 | 6.5 | 9/16 | 9/16 |
| 6-ME-6SW | 3/8" | 3/8" | 30.5 | 23.1 | 23.1 | 7.1 | 9.6 | 5/8 | 11/16 |
| 8-ME-8SW | 1/2" | 1/2" | 36.1 | 25.9 | 25.9 | 10.4 | 12.8 | 13/16 | 7/8 |
