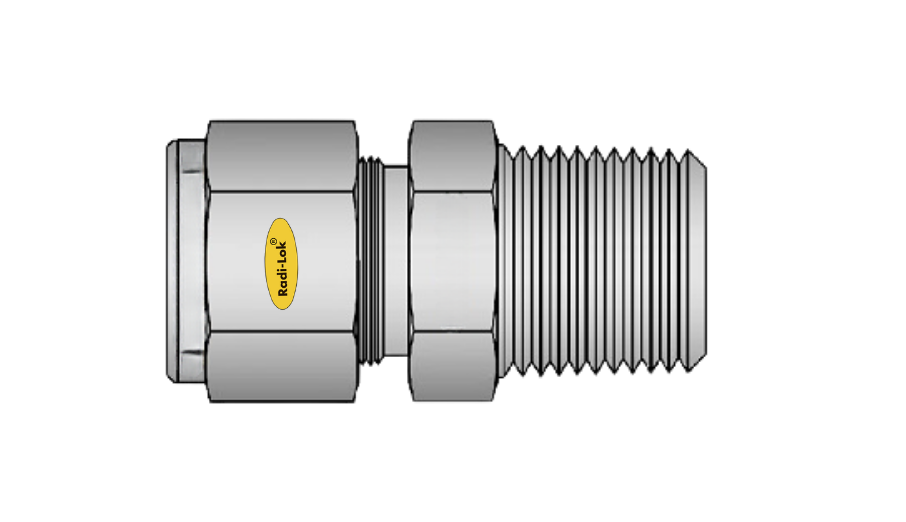

Male Connector – BSPT
Tube Fittings
Maximum Compatibility, Interchangeability, Low Torque
Size Range: 1/8" to 2" & 3mm to 50mm
Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
Variety of End Connections: RADILOK Tube Fitting, BSPT, ISO/BSP Parallel &
Tapered Threads, ISO 228/1 Parallel Thread
Fractional Tubes

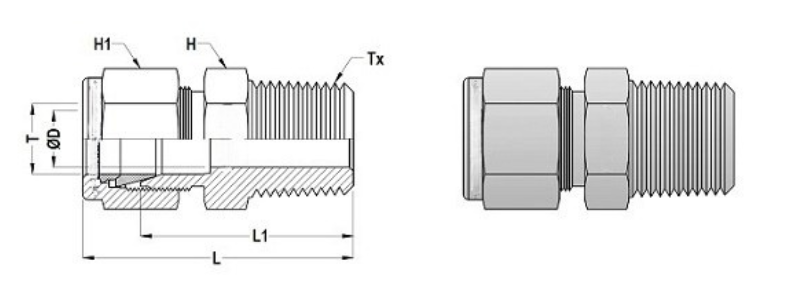

| RADILOK Part Number | T (Tube OD) | Tx (BSPT) | L (mm) | L1 (mm) | Ø D (mm) | H (inch) | H1 (inch) |
|---|---|---|---|---|---|---|---|
| 2-MC-2RT | 1/8" | 1/8" | 30.5 | 23.9 | 2.3 | 7/16 | 7/16 |
| 3-MC-2RT | 3/16" | 1/8" | 30.5 | 23.9 | 3.2 | 7/16 | 1/2 |
| 4-MC-2RT | 1/4" | 1/8" | 32.8 | 25.4 | 4.8 | 9/16 | 9/16 |
| 4-MC-4RT | 1/4" | 1/4" | 32.8 | 25.4 | 4.8 | 9/16 | 9/16 |
| 4-MC-4BRT | 1/4" | 1/4" | 34.7 | 33.7 | 4.8 | 7/16 | 9/16 |
| 5-MC-4RT | 5/16" | 1/4" | 36.1 | 31.2 | 6.4 | 11/16 | 11/16 |
| 5-MC-6RT | 5/16" | 3/8" | 35.3 | 27.9 | 4.8 | 9/16 | 11/16 |
| 6-MC-6RT | 3/8" | 3/8" | 36.6 | 29.7 | 7.1 | 11/16 | 11/16 |
| 6-MC-6BRT | 3/8" | 3/8" | 39.9 | 32.5 | 7.1 | 5/8 | 11/16 |
| 6-MC-8RT | 3/8" | 1/2" | 39.9 | 32.5 | 7.1 | 5/8 | 11/16 |
| 6-MC-12RT | 3/8" | 1/2" | 47.7 | 40.4 | 7.1 | 1 1/16 | 1 1/16 |
| 8-MC-8RT | 1/2" | 1/2" | 42.9 | 33.3 | 7.1 | 13/16 | 7/8 |
| 8-MC-8BRT | 1/2" | 1/2" | 43.4 | 33.3 | 9.5 | 13/16 | 7/8 |
| 8-MC-12RT | 1/2" | 3/4" | 45.2 | 40.4 | 10.4 | 1 1/16 | 7/8 |
| 10-MC-8RT | 5/8" | 1/2" | 45.2 | 34.0 | 10.4 | 15/16 | 1 |
| 10-MC-12RT | 5/8" | 3/4" | 49.0 | 38.9 | 11.9 | 1 | 1 |
| 12-MC-12RT | 3/4" | 3/4" | 49.0 | 40.4 | 11.9 | 1 1/16 | 1 1/8 |
| 12-MC-12BRT | 3/4" | 3/4" | 49.5 | 40.4 | 15.7 | 1 3/16 | 1 1/8 |
| 12-MC-16RT | 3/4" | 1" | 57.4 | 45.2 | 15.7 | 1 3/16 | 1 1/8 |
| 14-MC-12RT | 7/8" | 3/4" | 49.0 | 40.4 | 15.7 | 1 3/16 | 1 1/4 |
| 16-MC-12RT | 1" | 3/4" | 57.4 | 45.2 | 15.7 | 1 3/8 | 1 1/2 |
| 16-MC-16RT | 1" | 1" | 62.2 | 50.0 | 22.3 | 1 3/8 | 1 1/2 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (BSPT) | L (mm) | L1 (mm) | Ø D (mm) | H (mm) | H1 (mm) |
|---|---|---|---|---|---|---|---|
| 3M-MC-2RT | 3 mm | 1/8" | 30.5 | 23.9 | 2.4 | 12 | 12 |
| 3M-MC-4RT | 3 mm | 1/4" | 36.1 | 24.6 | 2.4 | 12 | 12 |
| 4M-MC-2RT | 4 mm | 1/8" | 31.2 | 24.6 | 2.4 | 12 | 12 |
| 4M-MC-4RT | 4 mm | 1/4" | 36.3 | 25.7 | 4.8 | 14 | 12 |
| 6M-MC-2RT | 6 mm | 1/8" | 38.1 | 31.0 | 4.8 | 17 | 14 |
| 6M-MC-4RT | 6 mm | 1/4" | 38.4 | 31.0 | 4.8 | 17 | 14 |
| 6M-MC-6RT | 6 mm | 3/8" | 38.4 | 31.0 | 4.8 | 17 | 16 |
| 8M-MC-6RT | 8 mm | 3/8" | 39.9 | 33.0 | 6.4 | 19 | 16 |
| 8M-MC-8RT | 8 mm | 1/2" | 45.6 | 38.1 | 6.4 | 19 | 22 |
| 10M-MC-8RT | 10 mm | 1/2" | 40.9 | 33.3 | 7.9 | 22 | 19 |
| 10M-MC-10RT | 10 mm | 5/8" | 45.8 | 38.7 | 7.9 | 22 | 25 |
| 12M-MC-12RT | 12 mm | 3/4" | 50.0 | 41.2 | 9.5 | 27 | 29 |
| 14M-MC-14RT | 14 mm | 7/8" | 44.1 | 34.0 | 9.5 | 29 | 25 |
| 16M-MC-16RT | 16 mm | 1" | 49.0 | 39.0 | 11.9 | 30 | 29 |
| 18M-MC-18RT | 18 mm | 1 1/8" | 50.5 | 41.4 | 11.9 | 32 | 32 |
| 20M-MC-20RT | 20 mm | 1 1/4" | 52.2 | 43.2 | 12.7 | 32 | 32 |
| 22M-MC-22RT | 22 mm | 1 1/4" | 57.4 | 49.2 | 15.9 | 32 | 32 |
| 25M-MC-25RT | 25 mm | 1 1/2" | 57.9 | 45.2 | 19.0 | 35 | 38 |
| 25M-MC-16RT | 25 mm | 1" | 62.3 | 50.0 | 21.8 | 38 | 38 |
