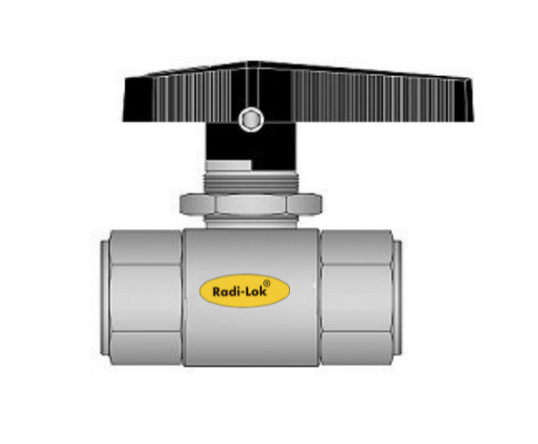

Panel Mount Ball Valve - Female X Female
Panel Mount Ball Valve - Female X Female
.png)
Application:
- These ball valves provide shut-off with quick ¼ turn open-close control of fluid utilised in process & instrumentation application.
- Two-way pattern for ON-OFF service.
- Three-way pattern for diverter service (not for shut-off).
- Bi-directional floating ball design to ensure leak-proof shut-off.
- Panel Mountable.
- Low operating torque.
- Positive handle stops.
- Handle indicating flow direction.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Standard DELRIN ball seat packing and optional PEEK or PCTFE ball seat packing.
- Temperature rating for DELRIN packing 176°F (80°C), for PEEK packing 500°F (260°C) & PCTFE packing 500°F (260°C).
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.
Panel Mount Ball Valve - NPT Female X NPT Female

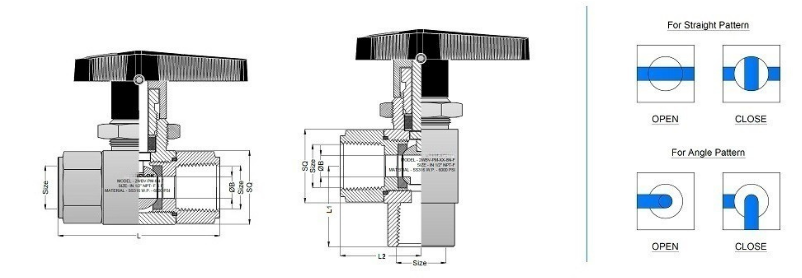

| RADILOK Part Number | End Connection | SQ (mm) | Ø B (mm) | L (mm) | L1 (mm) | L2 (mm) | ||
|---|---|---|---|---|---|---|---|---|
| Straight Pattern | Angle Pattern | Size | Size | |||||
| 2WBV-PM-4N-F | ABV-PM-4N-F | 1/4" | 1/4" | 25.4 | 4.7 | 57 | 28.5 | 28.5 |
| 2WBV-PM-4G-F | ABV-PM-4G-F | 1/4" | 1/4" | 25.4 | 4.7 | 57 | 28.5 | 28.5 |
| 2WBV-PM-6N-F | ABV-PM-6N-F | 3/8" | 3/8" | 25.4 | 6.0 | 57 | 28.5 | 28.5 |
| 2WBV-PM-6G-F | ABV-PM-6G-F | 3/8" | 3/8" | 25.4 | 6.0 | 57 | 28.5 | 28.5 |
| 2WBV-PM-8N-F | ABV-PM-8N-F | 1/2" | 1/2" | 32.0 | 9.5 | 70 | 35.0 | 35.0 |
| 2WBV-PM-8G-F | ABV-PM-8G-F | 1/2" | 1/2" | 32.0 | 9.5 | 70 | 35.0 | 35.0 |
| 2WBV-PM-12N-F | ABV-PM-12N-F | 3/4" | 3/4" | 38.0 | 15.0 | 80 | 40.0 | 40.0 |
| 2WBV-PM-12G-F | ABV-PM-12G-F | 3/4" | 3/4" | 38.0 | 15.0 | 80 | 40.0 | 40.0 |
| 2WBV-PM-16N-F | ABV-PM-16N-F | 1" | 1" | 50.0 | 20.0 | 101 | 50.5 | 50.5 |
| 2WBV-PM-16G-F | ABV-PM-16G-F | 1" | 1" | 50.0 | 20.0 | 101 | 50.5 | 50.5 |
