Reducing Union Tee
Reducing Union Tee
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

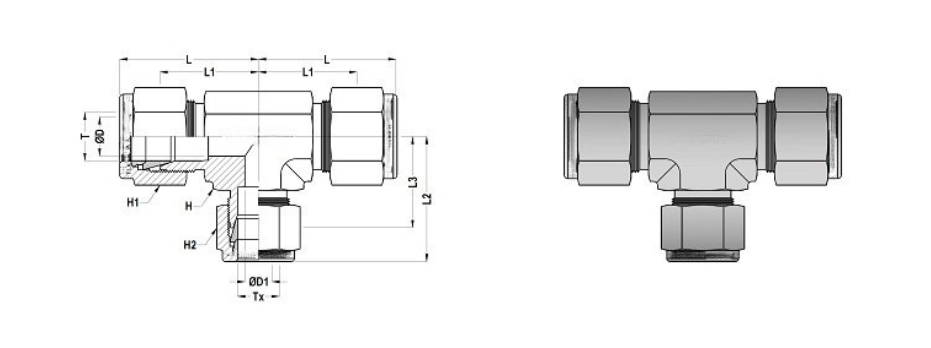

| RADILOK Part Number | T (Tube OD) | Tx (Tube OD) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Ø D (mm) | H (inch) | H1 (inch) | H2 (inch) |
|---|---|---|---|---|---|---|---|---|---|---|
| 6-RT-4 | 3/8" | 1/4" | 30.5 | 23.1 | 28.9 | 21.6 | 4.8 | 5/8 | 11/16 | 9/16 |
| 8-RT-4 | 1/2" | 1/4" | 36.1 | 25.9 | 31.7 | 24.4 | 4.8 | 13/16 | 7/8 | 9/16 |
| 8-RT-6 | 1/2" | 3/8" | 36.1 | 25.9 | 33.3 | 25.9 | 7.1 | 13/16 | 7/8 | 11/16 |
| 10-RT-6 | 5/8" | 3/8" | 38.9 | 28.7 | 36.1 | 28.7 | 7.1 | 1 | 1 | 11/16 |
| 12-RT-6 | 3/4" | 3/8" | 39.9 | 29.7 | 37.1 | 29.7 | 7.1 | 1.1/16 | 1.1/8 | 11/16 |
| 12-RT-8 | 3/4" | 1/2" | 39.9 | 29.7 | 39.9 | 29.7 | 10.4 | 1.1/16 | 1.1/8 | 7/8 |
| 16-RT-6 | 1" | 3/8" | 49.0 | 36.8 | 41.9 | 34.5 | 7.1 | 1.3/8 | 1.1/2 | 11/16 |
| 16-RT-8 | 1" | 1/2" | 49.0 | 36.8 | 44.7 | 34.5 | 10.4 | 1.3/8 | 1.1/2 | 7/8 |
| 16-RT-12 | 1" | 3/4" | 49.0 | 36.8 | 44.7 | 34.5 | 15.7 | 1.3/8 | 1.1/2 | 1.1/8 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | Tx (Tube OD) | L (mm) | L1 (mm) | L2 (mm) | L3 (mm) | Ø D (mm) | H (mm) | H1 (mm) | H2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- | ||||||||||
| M-RT- |
