RP Gasket
RP Gasket
Tube Fittings
- Features: RP Gasket provides a seal with male BSP/ISO parallel thread.

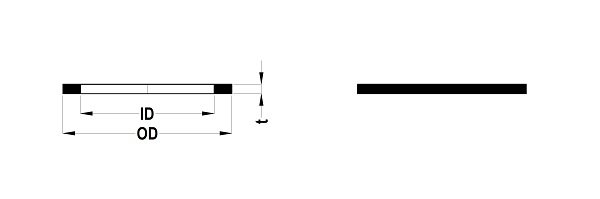

RP Gasket
| RADILOK Part Number | BSPP | ID (mm) | OD (mm) | t (mm) |
|---|---|---|---|---|
| 2G-RP-GSKT | 1/8" | 10.0 | 15.0 | 1.0 |
| 4G-RP-GSKT | 1/4" | 13.5 | 18.8 | 1.5 |
| 6G-RP-GSKT | 3/8" | 17.0 | 22.9 | 1.5 |
| 8G-RP-GSKT | 1/2" | 21.3 | 26.9 | 1.6 |
| 12G-RP-GSKT | 3/4" | 26.7 | 33.0 | 2.0 |
| 16G-RP-GSKT | 1" | 34.0 | 40.0 | 2.0 |
