Tube Fittings
SAE 'O'-Ring (UF)

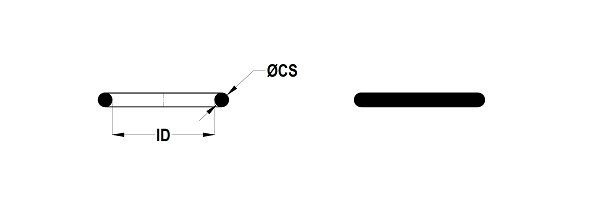

| RADILOK Part Number | T | T (UNF/UN-2A) | ID (mm) | Ø CS (mm) |
|---|---|---|---|---|
| SAE-902 | 1/8" | 5/16"-24 | 6.1 | 1.6 |
| SAE-903 | 3/16" | 3/8"-24 | 7.6 | 1.6 |
| SAE-904 | 1/4" | 7/16"-20 | 8.9 | 1.8 |
| SAE-905 | 5/16" | 1/2"-20 | 10.5 | 1.8 |
| SAE-906 | 3/8" | 9/16"-18 | 11.9 | 2.0 |
| SAE-908 | 1/2" | 3/4"-16 | 16.4 | 2.2 |
| SAE-910 | 5/8" | 7/8"-14 | 19.2 | 2.5 |
| SAE-912 | 3/4" | 1.1/16"-12 | 23.5 | 2.9 |
| SAE-914 | 7/8" | 1.3/16"-12 | 26.6 | 2.9 |
| SAE-916 | 1" | 1.5/16"-12 | 29.7 | 2.9 |
