Screwed Bonnet Needle Valve - BSPP Female X BSPP Female
Screwed Bonnet Needle Valve - BSPP Female X BSPP Female
.png)
Application:
- Wide range of general purpose in liquid & gas handling applications.
- One piece bar stock construction with full material traceability.
- Outside screwed bonnet design.
- Back seating of stem in fully open position prevents stem back-out.
- All types of valves have a self-centering, non-rotating needle on the valve seat, alternative seating to choose for every application requiring bubble tight shut-off.
- Safety stop pin (SS316 pin prevents detachment of the bonnet from the body due to vibrations).
- Bonnet-to-body seat, metal to metal seal eliminates the need of ‘O’-Ring seals.
- Dust cap with colour identification.
Specifications:
- Standard pressure rating up to 6000 psi (413 bars).
- Standard PTFE packing and optional Graphoil packing for higher temperature services.
- Temperature rating for PTFE 450°F (232°C) & for Graphoil 1000°F (538°F).
- Hydrostatic test: Body 1.5 times - 9000 psi (620 bars) & Seat 1.1 times - 6600 psi (455 bars).
- Pneumatic test: Seat - 1000 psi (69 bars).
- Valve is tested with nitrogen at 1000 psi for leakage at the seat, to maximum allowable leak rate of 0.1scc/min.

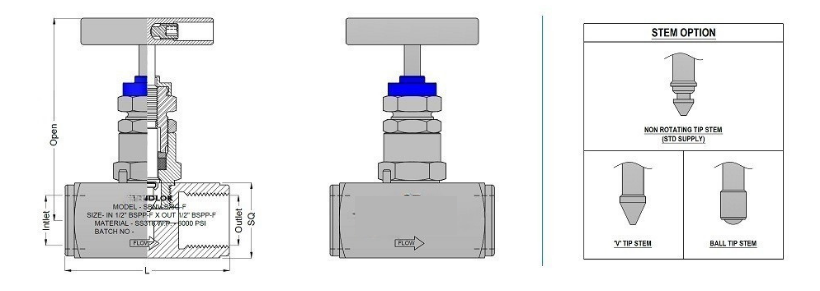

Screwed Bonnet Needle Valve - BSPP Female X BSPP Female
| RADILOK Part Number | End Connection | SQ (mm) | L (mm) | Open (mm) | Orifice (mm) | Cv | |
|---|---|---|---|---|---|---|---|
| Inlet | Outlet | ||||||
| SBNV-S-2G-F | 1/8" | 1/8" | 25.4 | 58 | 75.2 | 4 | 0.35 |
| SBNV-S-4G-F | 1/4" | 1/4" | 25.4 | 58 | 75.2 | 4 | 0.35 |
| SBNV-S-6G-F | 3/8" | 3/8" | 25.4 | 58 | 75.2 | 5 | --- |
| SBNV-S-8G-F | 1/2" | 1/2" | 28.5 | 62 | 76.8 | 6 | 0.85 |
| SBNV-S-12G-F | 3/4" | 3/4" | 35.0 | 62 | 80.0 | 6 | 0.85 |
| SBNV-S-16G-F | 1" | 1" | 42.0 | 80 | 94.5 | 8 | 1.20 |
