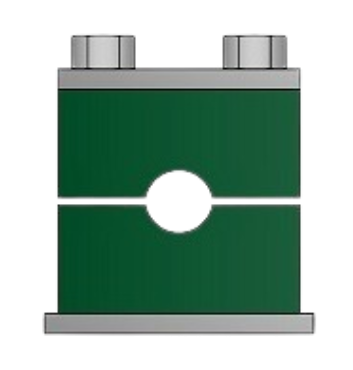

Tube Clamps
- Material: Polypropylene (PP)
- Clamp Color: Green
- Operating Temperature: -30°C to +90°C
- Material of Top Plate: CS Galvanised
- Material of bottom Plate: CS
- Fixing Screw: Hex Head Bolt CS Zinc Plated
Application:
- Tube Clamps are one of the best solution to assure the reliable tubing line support system for clamping, fastening and installing.
- Hydraulic pipe clamps ensures the clamps can greatly reduce the impact, vibration and, reduce system noise, and they are used in various hydraulic systems.
- The most typical pipe clamps are designed and made according to DIN 3015.
Pipe Gauge 90° Syphon
| RADILOK Part Number | Clamp Group | Pipe OD | L (mm) | L1 (mm) | H (mm) | H1 (mm) | B (mm) | Hex Bolt | |
|---|---|---|---|---|---|---|---|---|---|
| Metric Size | Fractional Size | ||||||||
| FPCS-6M | 1 | 6 mm | 1/4" | 36.0 | 40.0 | 17.0 | 34.0 | 30.0 | M6 X 30 |
| FPCS-8M | 8 mm | 5/16" | 36.0 | 40.0 | 17.0 | 34.0 | 30.0 | M6 X 30 | |
| FPCS-10M | 10 mm | 3/8" | 36.0 | 40.0 | 17.0 | 34.0 | 30.0 | M6 X 30 | |
| FPCS-12M | 12 mm | 1/2" | 40.0 | 50.0 | 19.0 | 38.0 | 30.0 | M6 X 35 | |
| FPCS-14M | 2 | 14 mm | - | 40.0 | 50.0 | 19.0 | 38.0 | 30.0 | M6 X 35 |
| FPCS-16M | 16 mm | 5/8" | 40.0 | 50.0 | 19.0 | 38.0 | 30.0 | M6 X 35 | |
| FPCS-18M | 18 mm | - | 40.0 | 50.0 | 19.0 | 38.0 | 30.0 | M6 X 35 | |
| FPCS-19M | 19 mm | 3/4" | 50.0 | 58.0 | 20.0 | 41.0 | 30.0 | M6 X 40 | |
| FPCS-20M | 20 mm | - | 50.0 | 58.0 | 20.0 | 41.0 | 30.0 | M6 X 40 | |
| FPCS-22M | 3 | 22 mm | - | 50.0 | 58.0 | 20.0 | 41.0 | 30.0 | M6 X 40 |
| FPCS-25M | 25 mm | 1" | 50.0 | 58.0 | 20.0 | 41.0 | 30.0 | M6 X 40 | |
| FPCS-28M | 4 | 28 mm | - | 58.0 | 70.0 | 24.0 | 48.0 | 30.0 | M6 X 45 |
| FPCS-30M | 30 mm | - | 58.0 | 70.0 | 24.0 | 48.0 | 30.0 | M6 X 45 | |
| FPCS-35M | 5 | 35 mm | - | 70.0 | 86.0 | 32.0 | 64.0 | 30.0 | M6 X 60 |
| FPCS-38M | 38 mm | 1.1/2" | 70.0 | 86.0 | 32.0 | 64.0 | 30.0 | M6 X 60 | |
| FPCS-42M | 42 mm | - | 70.0 | 86.0 | 32.0 | 64.0 | 30.0 | M6 X 60 | |
| FPCS-48M | 6 | 48 mm | - | 86.0 | 110.0 | 36.0 | 72.0 | 30.0 | M6 X 70 |
| FPCS-50M | 50 mm | 2" | 86.0 | 110.0 | 36.0 | 72.0 | 30.0 | M6 X 70 | |
