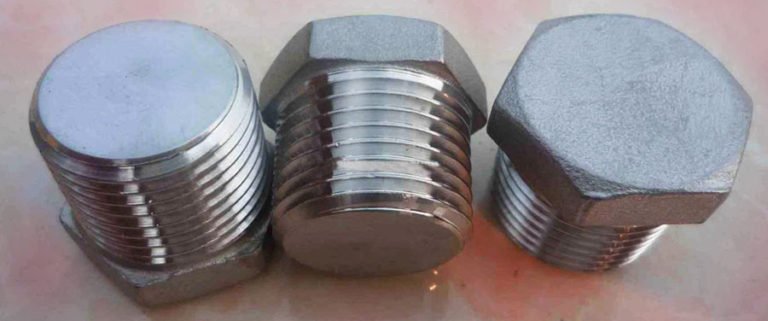

Threaded Fittings Hex Head Plug

254 SMO Pipe
Threaded Hex Head Plug Manufacturer, Supplier and Exporter in Mumbai, India

Forged Threaded Fitting – Hex Head Plug can be manufactured in accordance to ASME B16.11 and available in all major stainless steel grades (ASTM A182 F316L, F304L), ASTM A105, alloy steel grades etc. RADILOK is among one of the leading manufacturers and exporters of high-quality forged pipe fittings by using the latest technology and in-house QC system. We offer our materials with complete certification and as per national and international standards. We provide threaded pipe fittings and Hex Plugs as per your requirement with appropriate quantity order. Refer our Hex Head Plug specification and size chart as mentioned below.

Hex Head Plug Specifications

Family Details Parameter Details
Family Threaded Pipe Fitting Shape Hex Head Plug
Material Stainless Steel, Carbon Steel, Alloy Steel, Duplex Steel, Nickel Alloy Make TII
Size 1/8" - 4" Thickness 3000 Class, 6000 Class
Type Forged Variation
Finish Shot Blast, Sand Blast, Electro polish End Screwed
Marking TII-Specs-Description-Heat No. Packing Protected by Cap
254 SMO Pipe

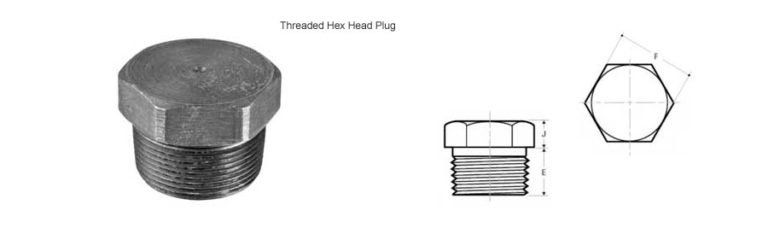

Hex Head Plug Size Chart

NPS Minimum Length (E) Minimum Hex Height (J) Nominal (F)
1/2 14 8 22
3/4 16 10 27
1 19 10 35
1 1/4 21 14 44.5
1 1/2 21 16 51
2 22 18 63.5
2 1/2 27 19 76
3 28 21 89
4 32 25 117.5
