Tube Plug
Tube Plug
Tube Fittings
- Features: Gaugeability, Interchangeability, Low Torque, Positive Leak-Free Seal.
- Size Range: 1/8" to 2" & 3mm to 50mm.
- Materials: SS, Brass, Duplex, Monel, Hastelloy, etc.
- Variety of End Connection: RADILOK Tube Fitting, NPT Pipe Thread, ISO 7/1 Tapered Thread, ISO 228/1 Parallel Thread.
Fractional Tubes

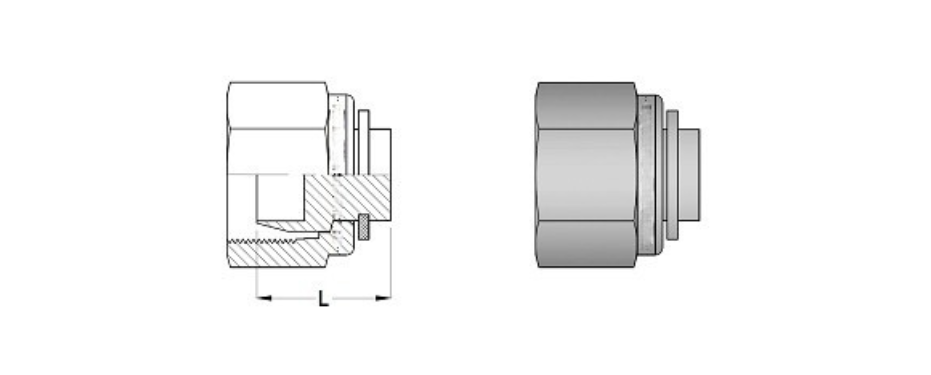

| RADILOK Part Number | T (Tube OD) | L (mm) |
|---|---|---|
| 3-TP | 3/16" | 14.4 |
| 4-TP | 1/4" | 14.3 |
| 5-TP | 5/16" | 14.6 |
| 6-TP | 3/8" | 14.5 |
| 8-TP | 1/2" | 18.5 |
| 10-TP | 5/8" | 18.8 |
| 12-TP | 3/4" | 18.6 |
| 14-TP | 7/8" | 18.4 |
| 16-TP | 1" | 21.6 |
Metric Tubes
| RADILOK Part Number | T (Tube OD) | L (mm) |
|---|---|---|
| 3M-TP | 3mm | 12.0 |
| 4M-TP | 4mm | 12.0 |
| 6M-TP | 6mm | 14.0 |
| 8M-TP | 8mm | 14.5 |
| 10M-TP | 10mm | 14.7 |
| 12M-TP | 12mm | 18.5 |
| 14M-TP | 14mm | 18.5 |
| 15M-TP | 15mm | 18.9 |
| 16M-TP | 16mm | 18.8 |
| 18M-TP | 18mm | 18.8 |
| 20M-TP | 20mm | 20.9 |
| 22M-TP | 22mm | -- |
| 25M-TP | 25mm | -- |
