Vent Protector
Vent Protector
RADILOK vent protector fitting is used to protect tubes, instruments, outlet vents, bleed-off lines and every tube outlet that is open to atmospheric pressure. The end of the protector has a filter mesh wire screen of mesh 40, made of stainless steel 316, that prevents any foreign particles like dust or insects from entering the system thus preventing from clogging and causing damage.
We manufacture these vent protectors in sizes ranging from 1/8" to 1" with various threaded connections such as NPT, BSPT or according to client's request. Every vent protector is 100% factory tested.
Application:
- RADILOK Vent Protector fitting is used to protect tubes that are exposed to atmospheric pressure, instruments that are open to atmospheric pressure and every tube outlet that is open to atmospheric pressure.
Specifications:
- The end of the fitting has a filter screen of mesh 40, made of stainless steel 316.
Features:
- Vent Protector is available in size from 1/8" to 1".
- The threads are NPT, BSPT or others, according to request.
Testing:
- Every Vent Protector is 100% factory tested.
Vent Protector
Vent Protector

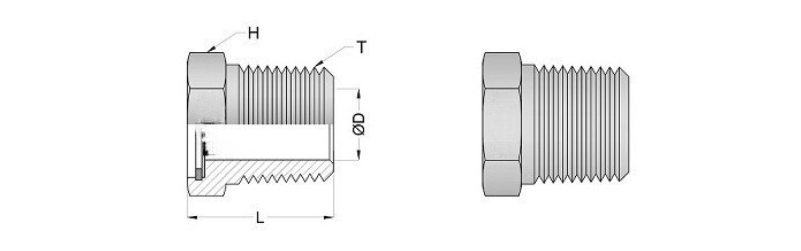

| RADILOK Part Number | T (NPT) | L (mm) | Ø D (mm) | H (Inch) |
|---|---|---|---|---|
| VP-2N | 1/8" | 14.5 | 4.8 | 1/2 |
| VP-4N | 1/4" | 20.0 | 4.8 | 9/16 |
| VP-6N | 3/8" | 20.0 | 10.4 | 11/16 |
| VP-8N | 1/2" | 26.0 | 12.7 | 7/8 |
| VP-12N | 3/4" | 27.0 | 18.3 | 1.1/16 |
| VP-16N | 1" | 34.0 | 22.4 | 1.3/8 |
