ANSI B16.5 LAP JOINT FLANGE
ASME B16.47 LAP JOINT FLANGE
ANSI B16.5 Class 150, 300, 600, 900 Lap Joint Flanges Manufacturers, ASME B16.47 Series A and B Lap Joint Flange Suppliers in Mumbai, India.

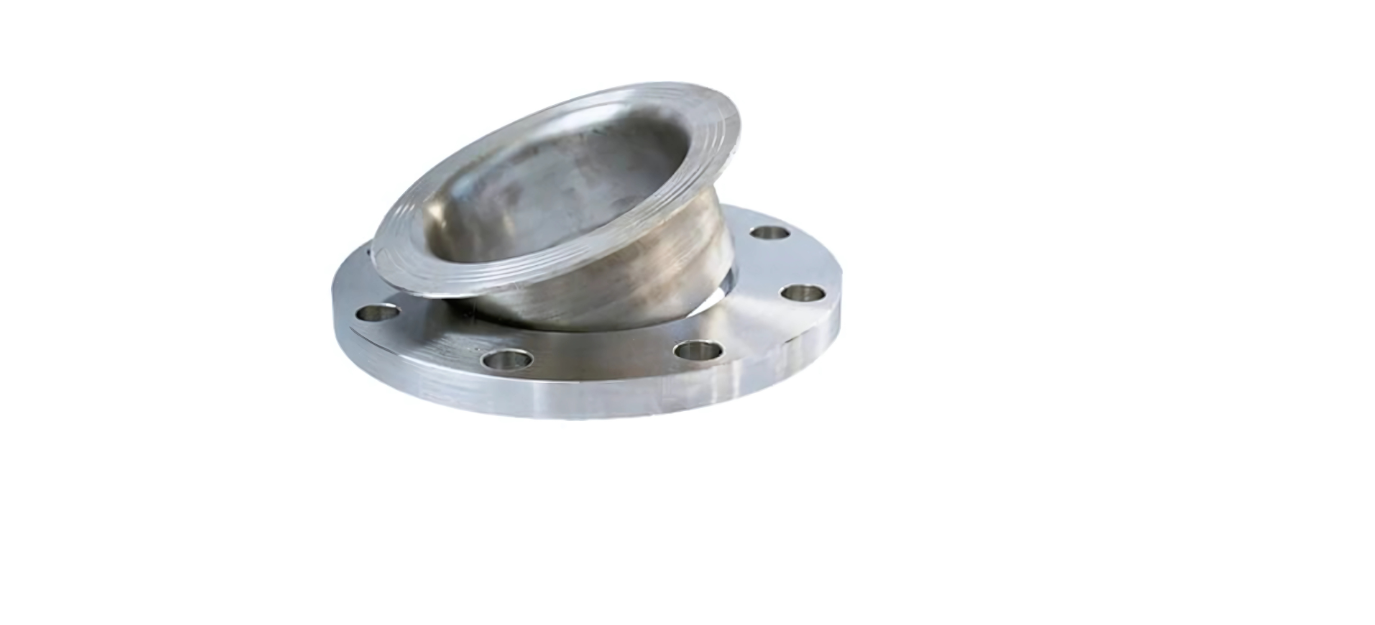

RADILOK is a pioneer manufacturer & trader of Lap Joint Flanges, which is very similar to a slip-on flange, with the main difference being that it has a curved radius at the bore and face to house a lap joint stub-end. Stainless Steel Lap Joint Flanges are characteristically used in circumstances where recurrent dismantling is essential for inspection.
ASTM A182 Stainless Steel Lap Joint Flanges, High Quality Lap Joint Flanges Exporters, Copper Nickel Lap Joint Flanges, Duplex Steel Lap Joint Flanges, Super Duplex Steel Lap Joint Flanges, Manufacturers and Suppliers of Lap Joint Flanges in Various types of Material Grades.
The diameter of the smaller bore in Alloy 20 Lap Joint Flanges is the same as the inner diameter of the matching pipe. A restriction is built into the bottom of the bore in Duplex Steel Lap Joint Flanges, which sets as a shoulder for the pipe to rest on. Super Duplex Steel Lap Joint Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding. Monel Lap Joint Flanges itself is not welded or fixed in any way. It is free to spin for proper alignment with whatever it is joining to.The contact surfaces in these Nickel Alloy Lap Joint Flanges do not match and there is no gasket that has one type on one side and another type on the other side.
Titanium Lap Joint Flanges, SS Lap Joint Flanges, High Nickel Alloy Lap Joint Flanges Exporters, Brass Lap Joint Flange Dealers, Hastelloy Lap Joint Flanges, Inconel Alloy Lap Joint Flanges, Incoloy Lap Joint Flanges, Alloy 20 Lap Joint Flanges, Monel Alloy Lap Joint Flanges Stockists and Stockholders.
Lap Joint Flanges Specification
| Standard | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| BS | BS4504, BS4504, BS1560, BS10 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
Lap Joint Flange Material and Grades
| Stainless Steel Lap Joint Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Duplex and Super Duplex Steel Lap Joint Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Nickel Alloy Lap Joint Flanges | ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
| Copper Alloy Lap Joint Flanges | ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
