ANSI B16.5 ORIFICE FLANGE
ASME B16.47 ORIFICE FLANGE
ANSI B16.5 Class 150, 300, 600, 900 Orifice Flanges Manufacturers, ASME B16.47 Series A and B Orifice Flange Suppliers in Mumbai, India.

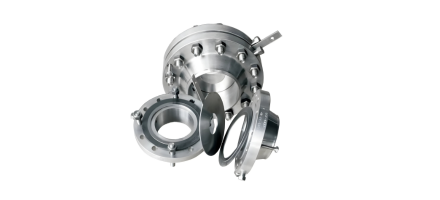

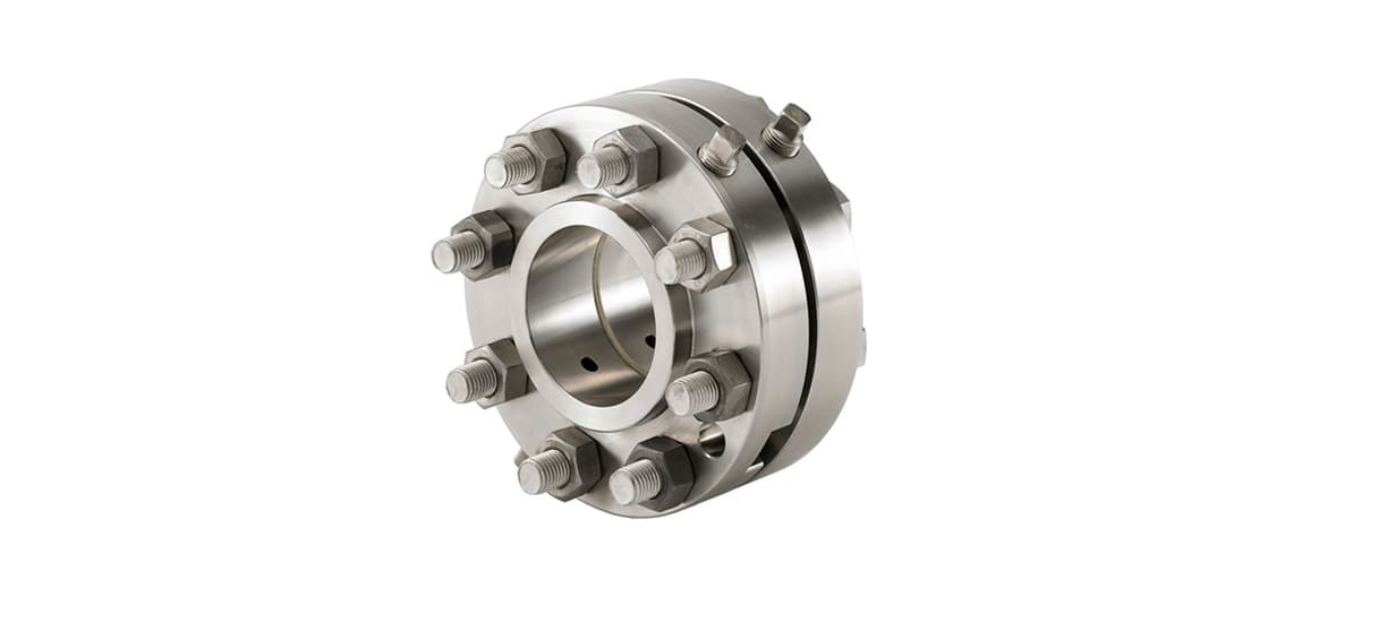

RADILOK is a known manufacturer & dealer of Orifice Flanges, which is a device used for measuring flow rate, for reducing pressure or for restricting flow. Stainless Steel Orifice Flanges is a thin plate with a hole in it, which is usually placed in a pipe.
Duplex Steel Orifice Flanges, Super Duplex Steel Orifice Flanges, ASTM A182 Stainless Steel Orifice Flanges, High Quality Orifice Flanges Exporters, Copper Nickel Orifice Flanges, Manufacturers and Suppliers of Orifice Flanges in Various types of Material Grades.
A slight downstream of Duplex Steel Orifice Flanges, the flow influences its point of supreme convergence, where the speedspreads its supreme and the pressure ranges its minutest. Super Duplex Steel Orifice Flanges are commonly made with sharp-edged circular orifices and installed concentric with the pipe and with pressure tapping at one of three standard pairs of distances upstream and downstream of the plate. Monel Orifice Flanges is also used to reduce pressure or restrict flow, in which case they are often called restriction plates.
Monel Alloy Orifice Flanges, High Nickel Alloy Orifice Flanges Exporters, Brass Orifice Flange Dealers, Hastelloy Orifice Flanges, Inconel Alloy Orifice Flanges, Incoloy Orifice Flanges, Titanium Orifice Flanges, SS Orifice Flanges Stockists and Stockholders.
Orifice Flanges Specification
| Standard | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/2" (15 NB) to 48" (1200NB) |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| BS | BS4504, BS4504, BS1560, BS10 |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
Orifice Flanges Material and Grades
| Stainless Steel Orifice Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Duplex and Super Duplex Steel Orifice Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Nickel Alloy Orifice Flanges | ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
| Copper Alloy Orifice Flanges | ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200 |
