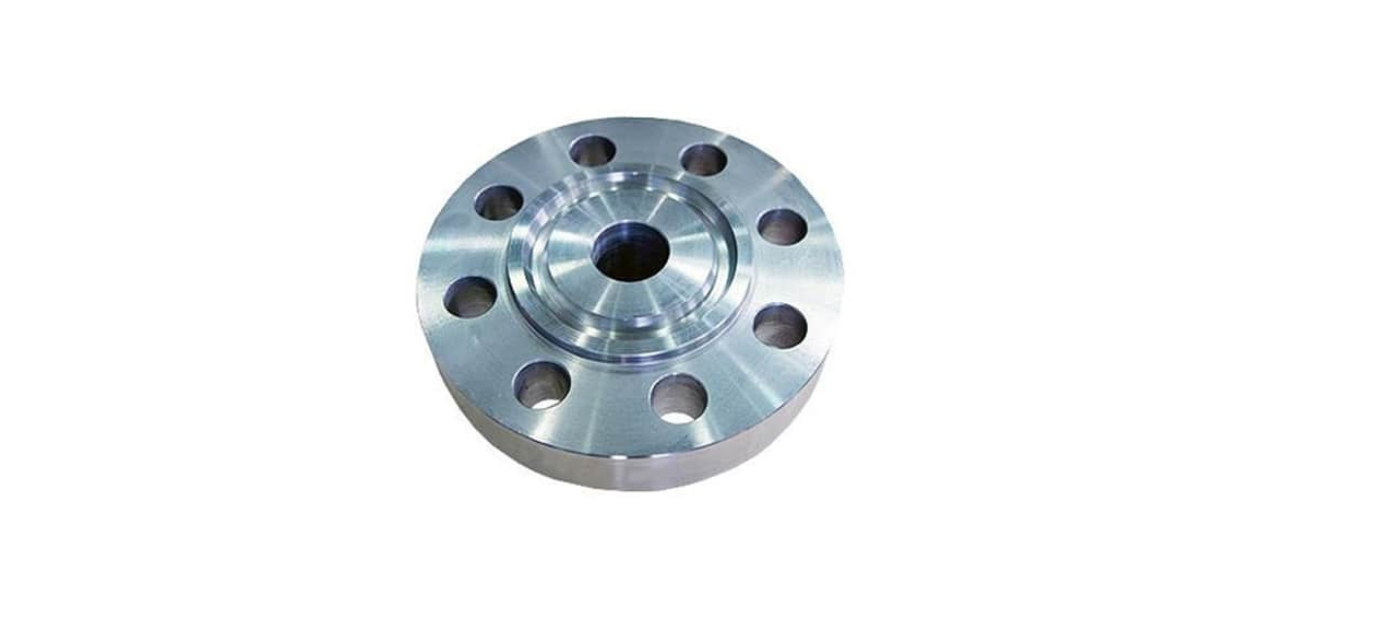

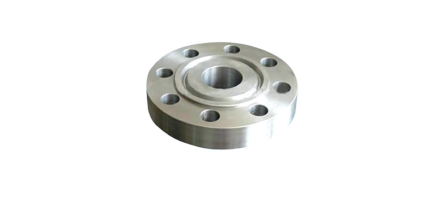

ANSI B16.5 RING TYPE JOINT FLANGE
ASME B16.47 RING TYPE JOINT (RTJ) FLANGE
ANSI B16.5 Class 150, 300, 600, 900 RTJ Flanges Manufacturers, ASME B16.47 Series A and B Ring Type Joint Flange Suppliers in Mumbai, India.
RADILOK is a skilled trader and manufacturer of Ring Type Joint Flanges (RTJ) that is typically used in high pressure and/or high temperature services above 800 Degree F (427 Degree C). Stainless Steel Ring Type Joint Flanges are heavy duty and high-pressure gaskets that are largely used in offshore and onshore petrochemical applications. Flanges are precision-engineered components designed to be used in conjunction with precision-machined flanges.
Super Duplex Steel Ring Type Joint Flanges, High Quality Ring Type Joint Flanges Exporters, ASTM A182 Stainless Steel RTJ Flanges, Duplex Steel RTJ Flanges, Copper Nickel Ring Type Joint Flanges, Manufacturers and Suppliers of Socket Weld Flanges in Various types of Material Grades.
Duplex Steel Ring Type Joint Flanges seal when tightened bolts compress the gasket between the flanges into the grooves, coining the gasket to make intimate contact inside the grooves, creating a metal to metal seal. Super Duplex Steel Ring Type Joint Flanges may have a raised face with a ring groove machined into it, where this raised face does not serve as any part of the sealing means. Monel Ring Type Joint Flanges ideally needs to be roughly less than the flange material to ensure sufficient deformation of the gasket without damaging the flange facing. Worn, pitted or corroded flange sealing surfaces can impede the sealing ability of Nickel Alloy Ring Type Joint Flanges. We also offer these flanges in varied sizes at best prices.
Incoloy RTJ Flanges, Alloy 20 Ring Type Joint Flanges, Monel Alloy Ring Type Joint Flanges, Hastelloy Ring Type Joint Flanges, SS Ring Type Joint (RTJ) Flanges, High Nickel Alloy RTJ Flanges Exporters, Brass Ring Type Joint Flange Dealers, Inconel Ring Type Joint Flanges Stockists and Stockholders.
Ring Type Joint (RTJ) Flange Specification
| Standard | ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings |
| Size | 1/8" to 84"NB |
| Class | 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc. |
| BS | BS4504, BS4504, BS1560, BS10 |
| DIN | DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673 |
| Flange Face Type | Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ) |
RTJ Flange Material and Grades
| Stainless Steel Ring Type Joint (RTJ) Flanges | ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H,904L |
| Duplex and Super Duplex Steel Ring Type Joint (RTJ) Flanges | ASTM / ASME A/SA 182 F 44, F 45, F51, F 53, F 55, F 60, F 61 |
| Nickel Alloy Ring Type Joint (RTJ) Flanges | ASTM SB564, SB160, SB472, SB162 Nickel 200 (UNS No. N02200), Nickel 201 (UNS No. N02201), Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500), Inconel 800 (UNS No. N08800), Inconel 825 (UNS No. N08825), Inconel 600 (UNS No. N06600), Inconel 625 (UNS No. N06625), Inconel 601 (UNS No. N06601), Hastelloy C 276 (UNS No. N10276), Alloy 20 (UNS No. N08020) |
| Copper Alloy Ring Type Joint (RTJ) Flanges | ASTM SB 61, SB62, SB151, SB152 UNS No. C 70600 (Cu-Ni 90/10), C 71500 (Cu-Ni 70/30), UNS No. C 10100, 10200, 10300, 10800, 12000, 12200. |
